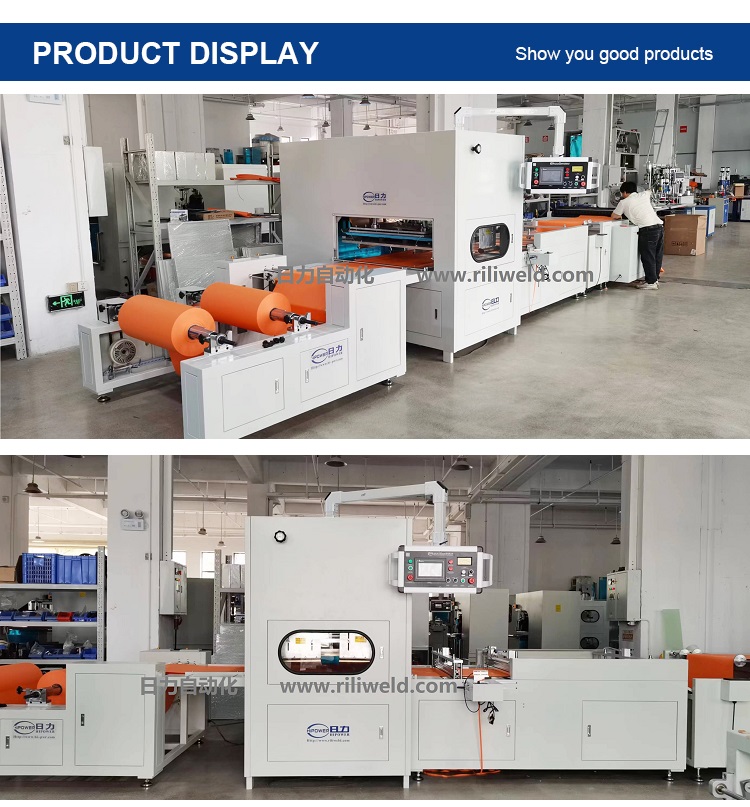

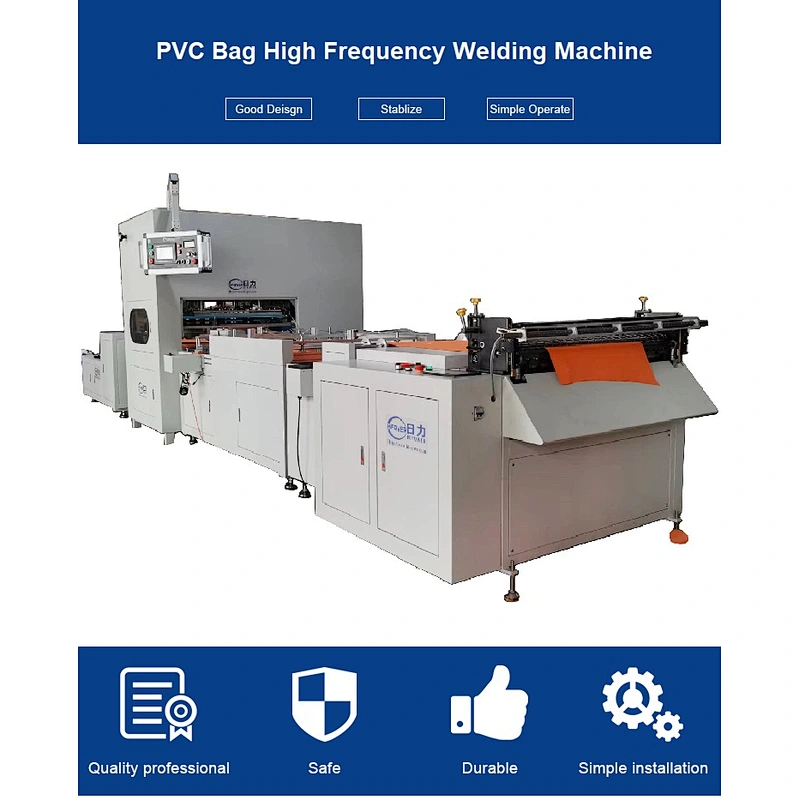

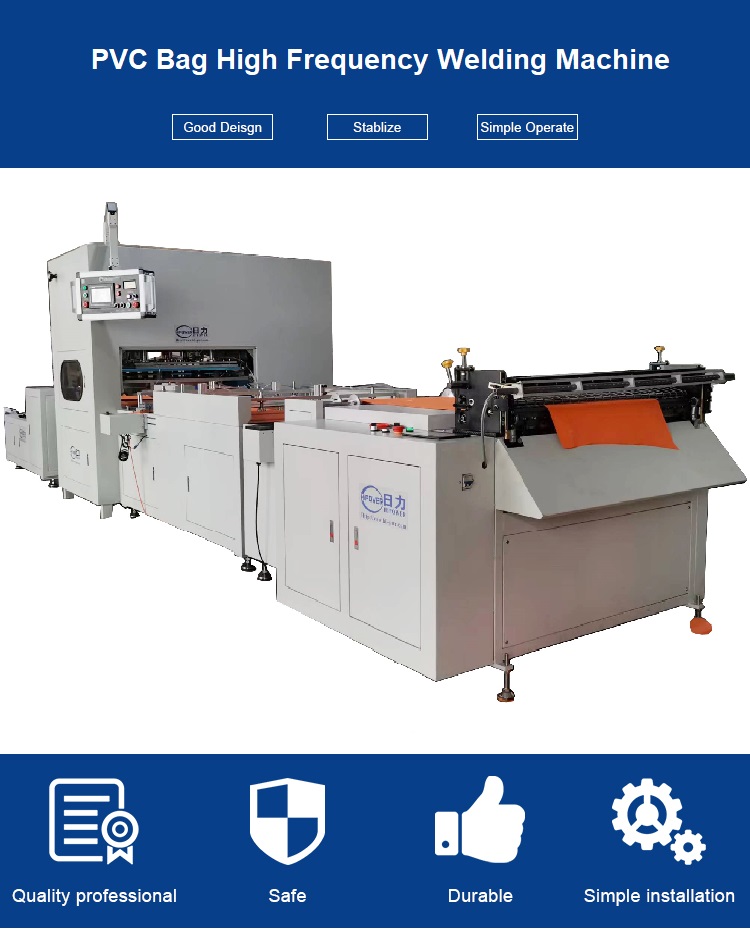

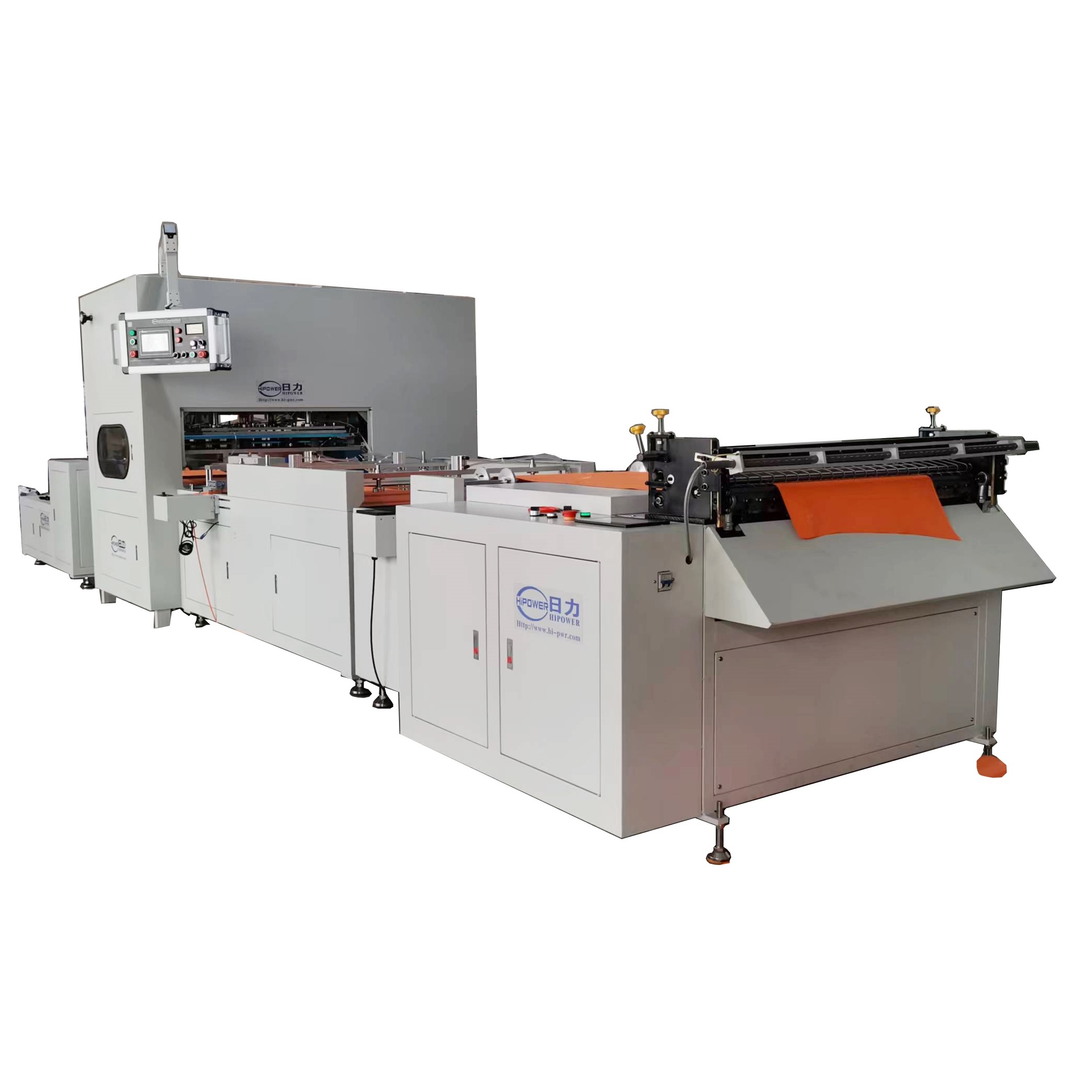

Full Auto PVC Plastic Bag Continuous Welding Machine for Making PVC Sleeve Bags, Stationary Bags, Medical Bags

Full Auto PVC Plastic Bag Continuous Welding Machine for Making PVC Sleeve Bags, Stationary Bags, Medical Bags

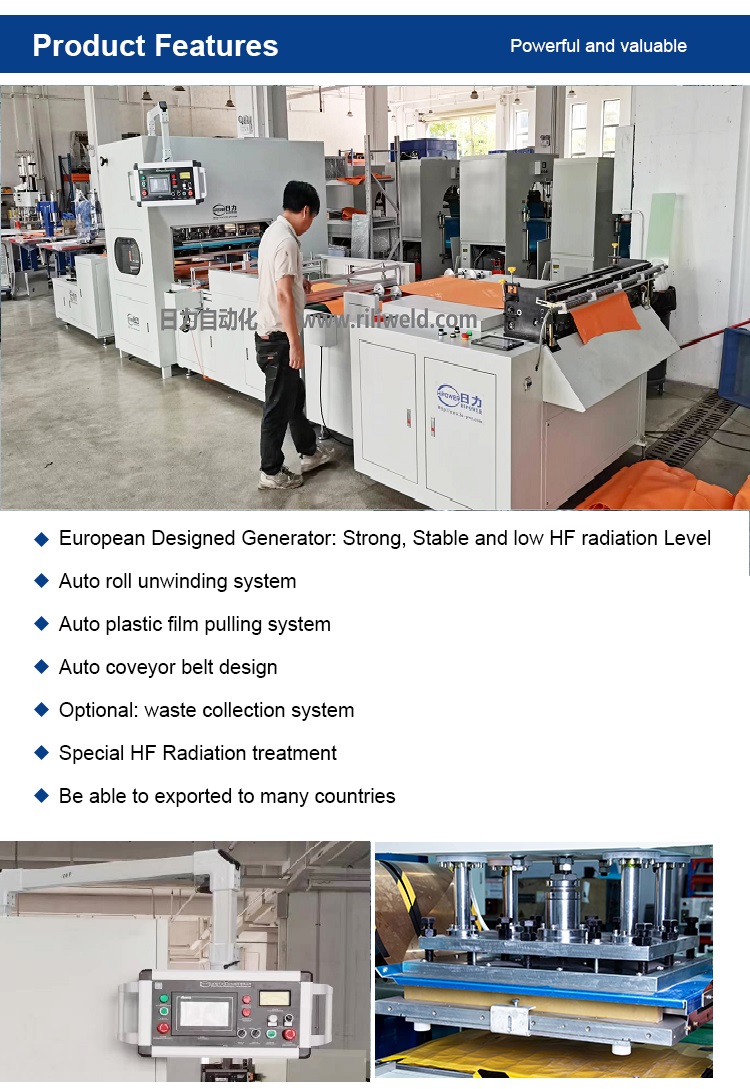

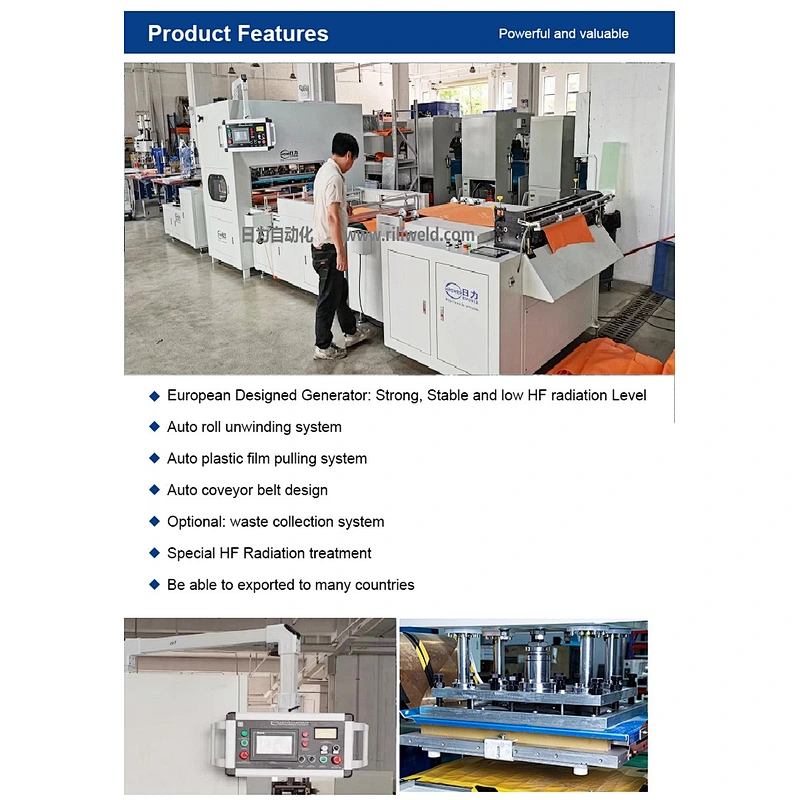

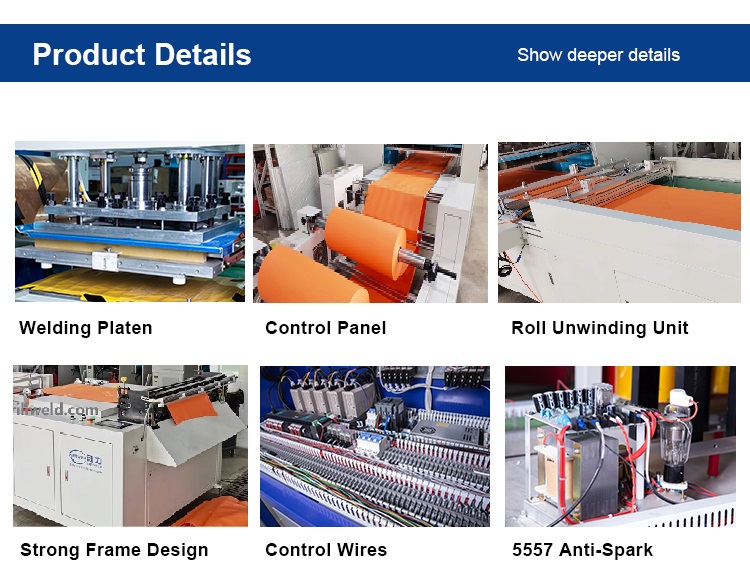

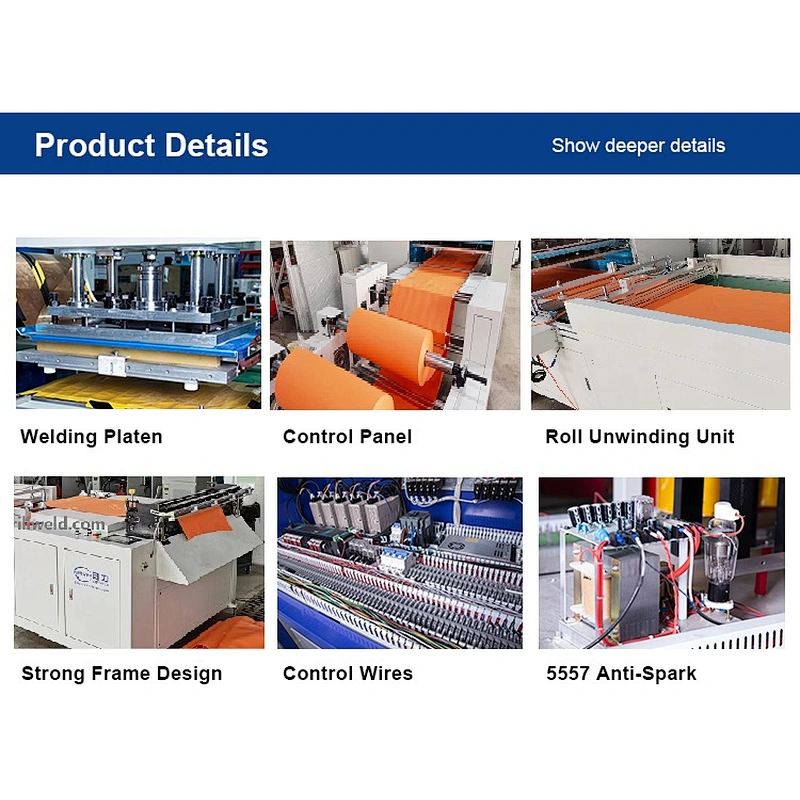

I. Machine Features
1. CE rated, with CE certificate
2. automatic 2 sliding welding stations
3. Pneumatic mould hanging structure available
4. Automatic sliding table, table size 1300*1500mm
5. Imported Japan Toshiba tube installed,
6. 5557 anti spark installed

Technical Specifications:
Model: HR-25KW
Output Power of Generator : 25KW
Anti-Spark System: 5557
Voltage : 380V 3Phase
Frequency: 13.56 MHZ
Input power: 35KVA
Rectifier: SILICON DIODE
Oscillation tube: 8T25RA
Max pressure: 2000kg
Operation mode: Peumatic
Max gap of electrodes: 150mm
Size of active horn: 150mm
Upper Electrode (W*H*L): 1500*2000mm (CAN BE ON REQUEST)
Size of Work Table (L*W): 1500*2000mm
Welding time: 1- 10S
