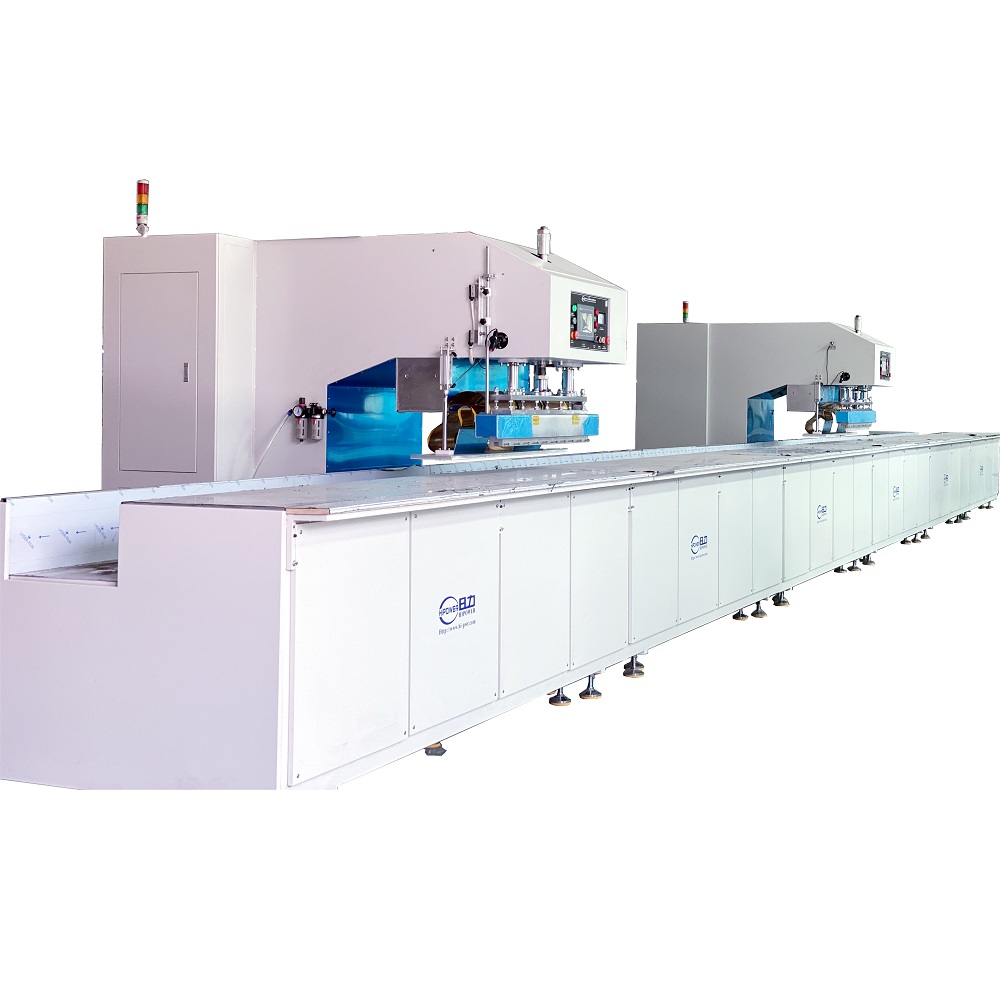

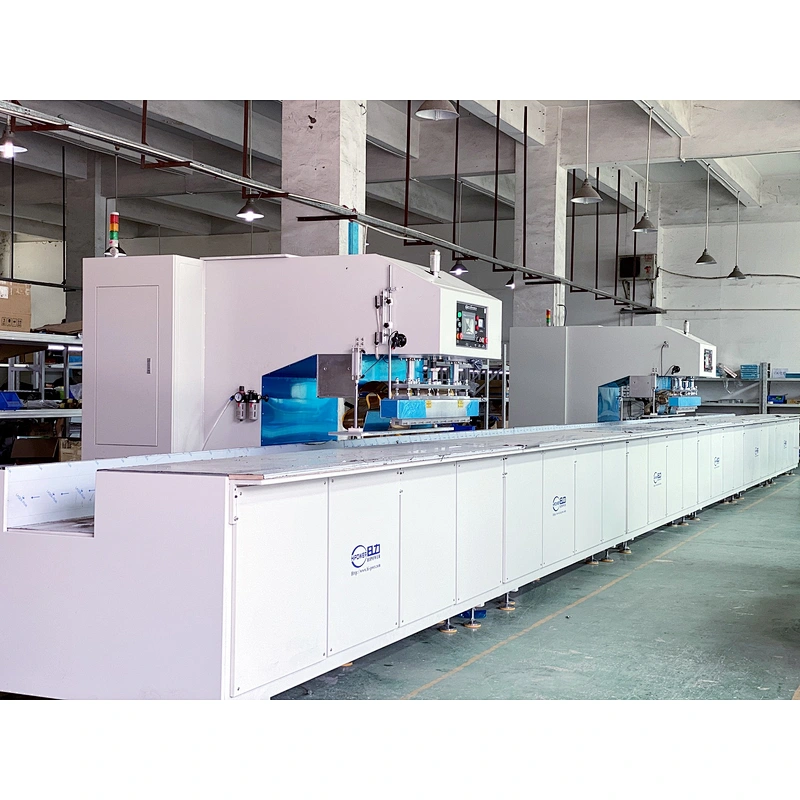

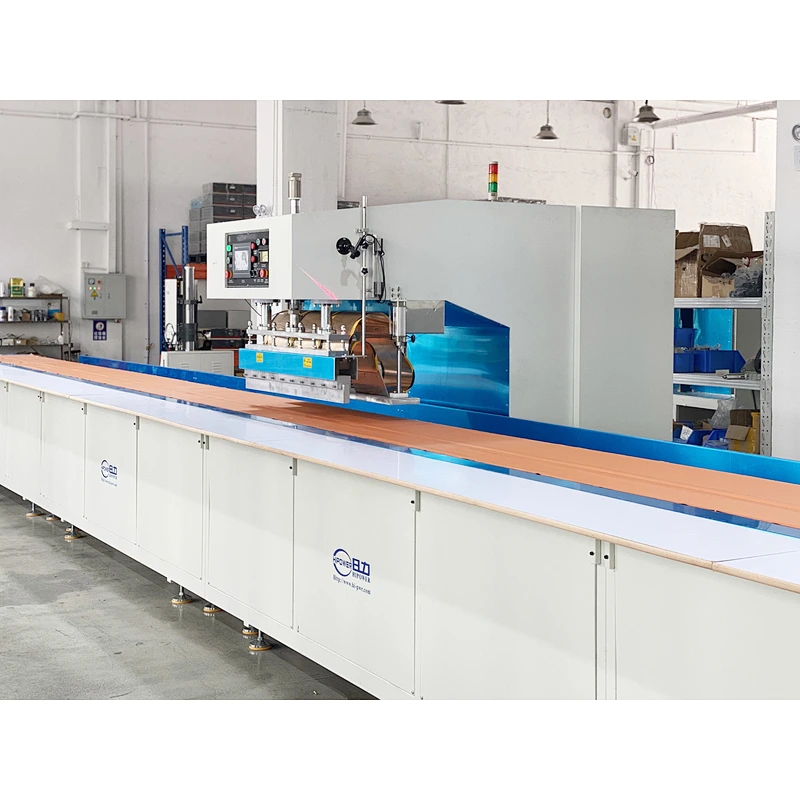

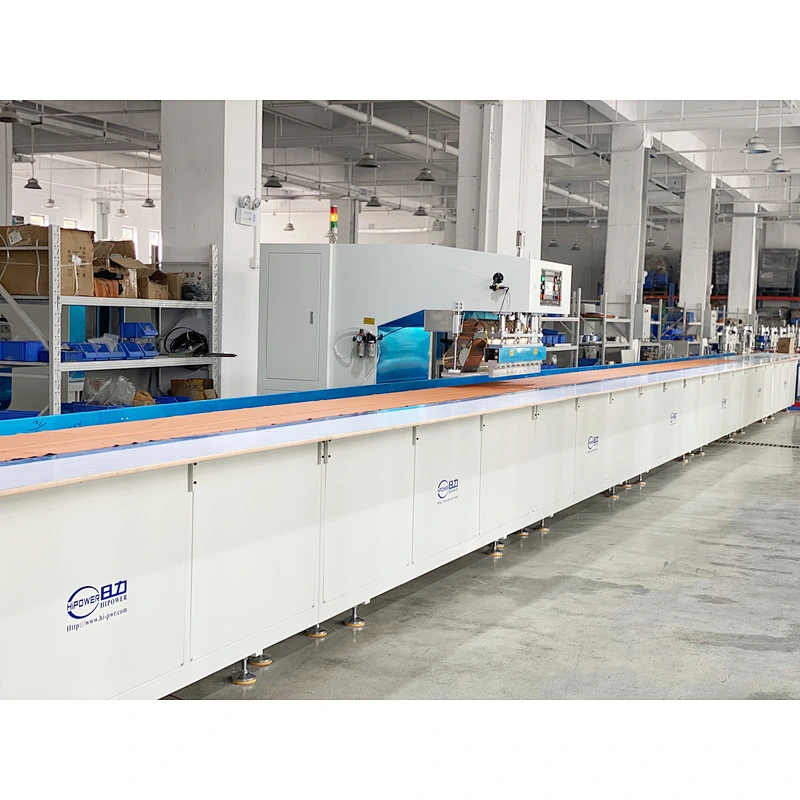

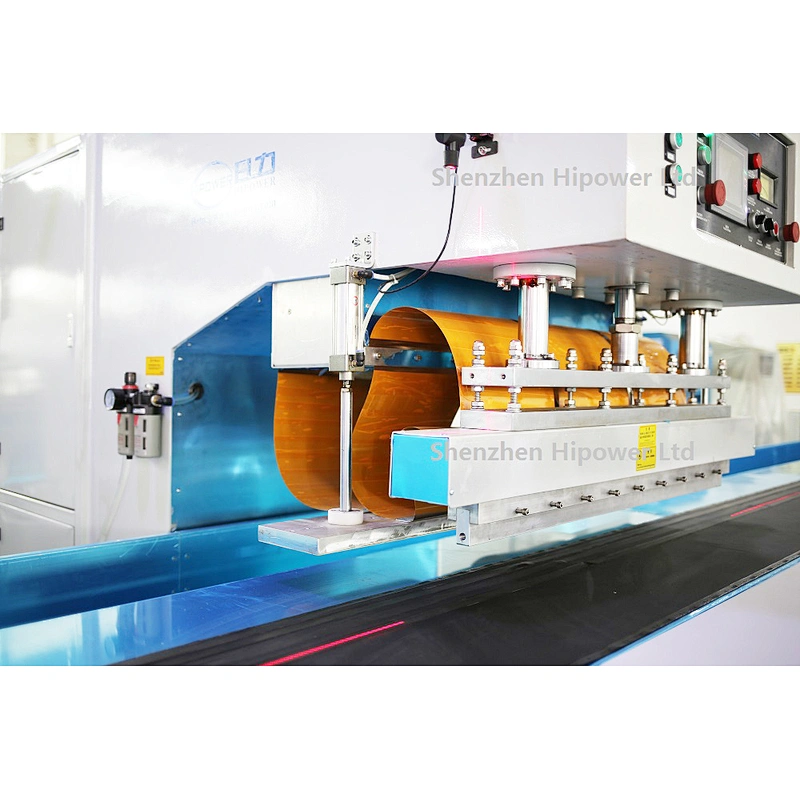

Double Heads Track Welder, High Frequency PVC Welding Machine
Application:
It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents,tensile structures, advertising billboards,spark protection cloth ,tent of truck, canvas of agricultural,canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, etc.
Machine General Features:
1. Servo-motor; Touch screen programmable HMI / PLC
2. European-model square high frequency vibration box, more reliable and stable in output
3. Single line or two lines continue welding, welding length can be ordered as special need.
4. Can be used as a freestanding machine for welding production or as a supplement to a larger system.
5. CE rated machine; factory verified by SGS and BV;
6. Customer's site installation, training & maintenance available
7. Double Operator Control Press Pedals – on both sides of machine for ease of access and material positioning during welding of complex shapes of fabric
| Model | HR-8KWA | HR-12KWA | HR-15KWA | HR-25KWA |
| Output Power of Generator | 8KW | 12KW | 15KW | 25KW |
| Anti-Spark System | 5557 High sensitive anti-spark system | |||
| Voltage | 3P AC 380V 50Hz-60HZ or customize | |||
| Frequency | 27.12MHz | |||
| Input power | 15KVA | 20KVA | 25KVA | 35VA |
| Rectifier | SILICON DIODE | |||
| Oscillation tube | 7T69RB | E3130 | 8T85RB | 8T25RA |
| Max pressure | 500kg | 800kg | 1000kg | 1500kg |
| Max gap of electrodes | 150mm | |||
| Size of active horn | 150mm | |||
| Upper Electrode (W*H*L) | 50*50*800mm | 50*50*900mm | 50*50*900mm | 50*50*1000mm |
| Welding time | 0.01~9.99s adjustable | |||
| Working Table Length | 6m, 9m, 12m, 15m,....every section 3 meters long | |||
