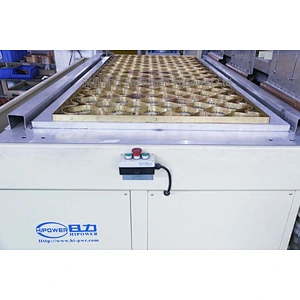

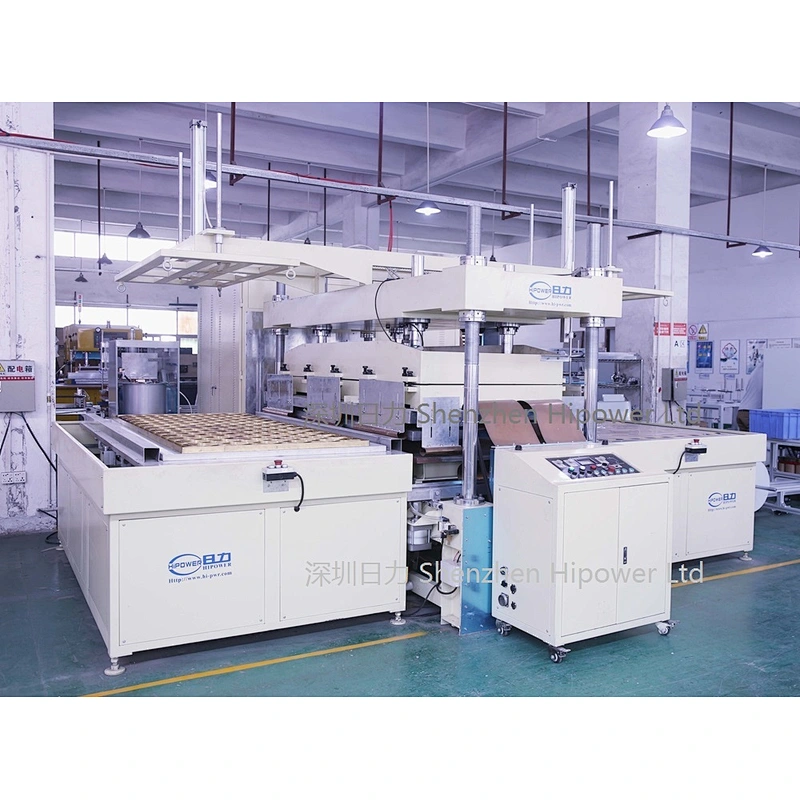

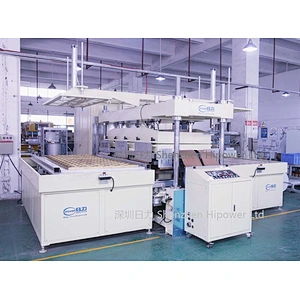

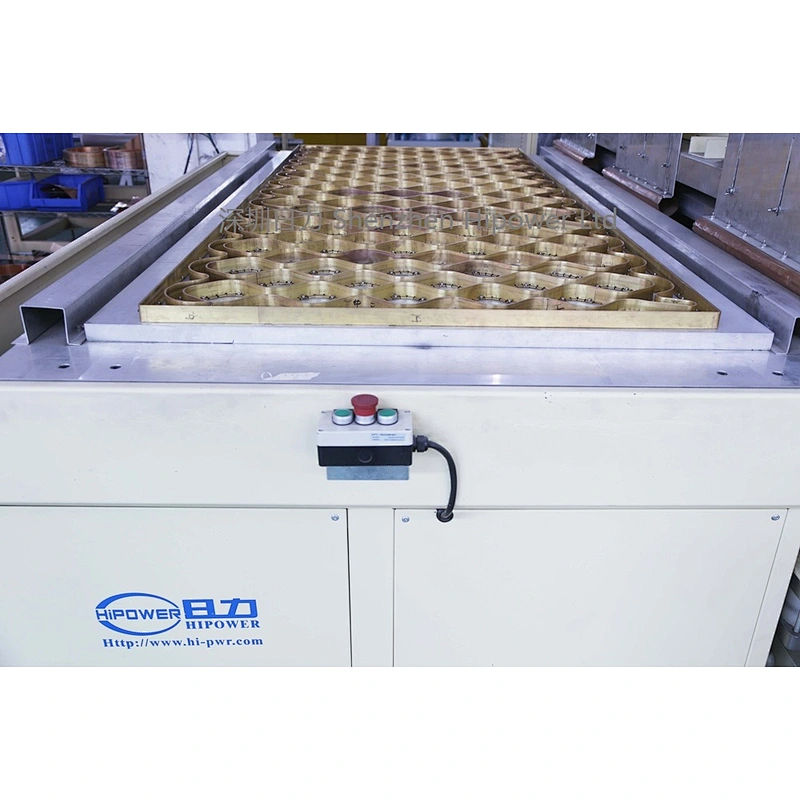

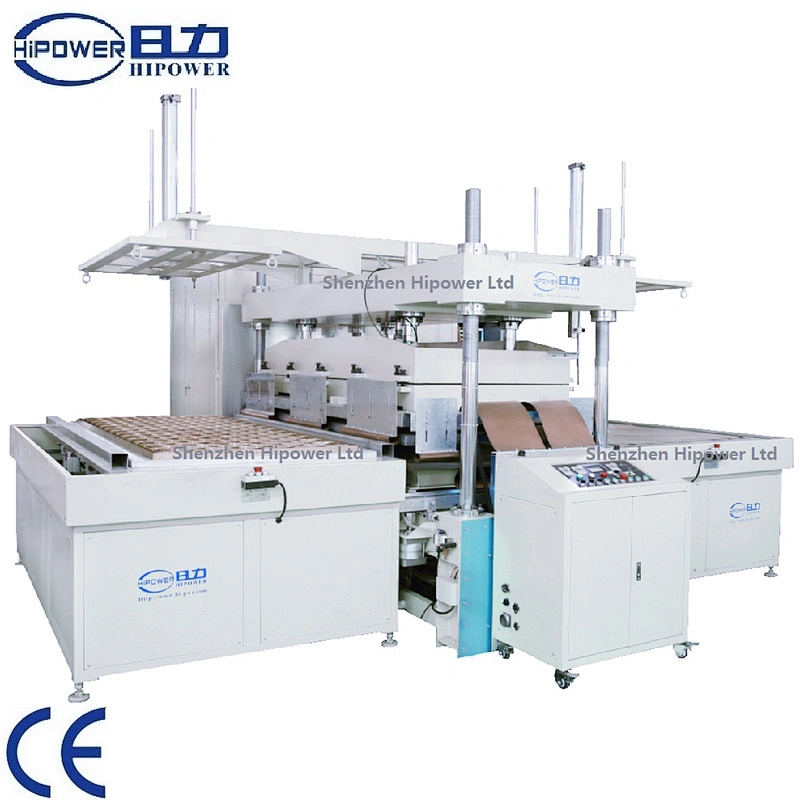

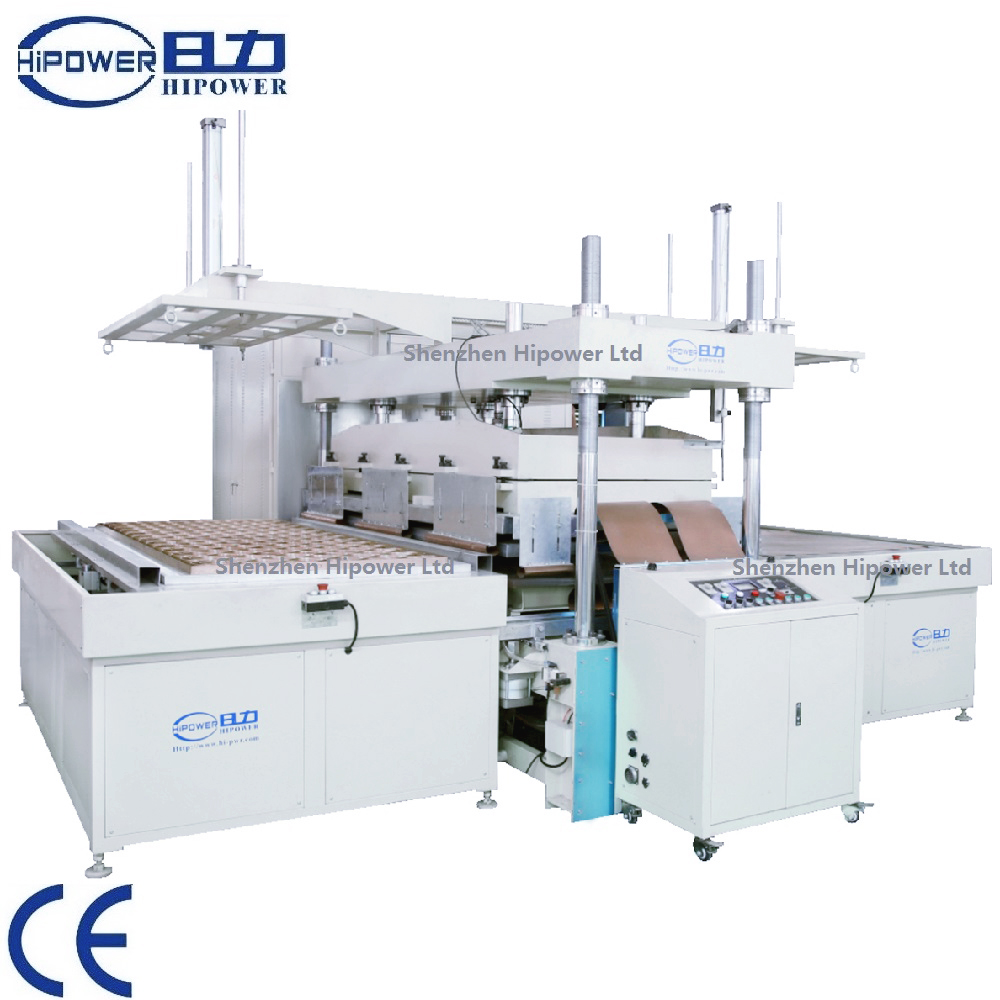

High Frequency Welding Machine for water bed, pvc mattress, inflatable sofa bed

High Frequency Welding Machine for water bed, pvc mattress, inflatable sofa bed

Application:

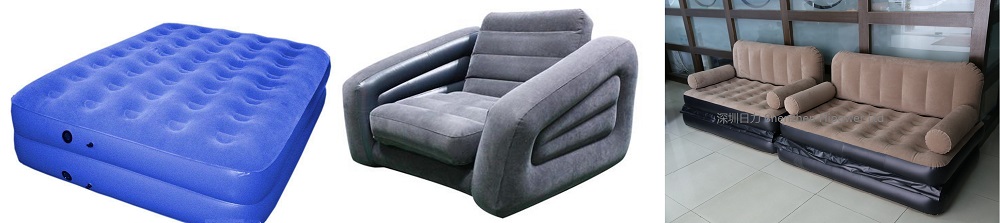

applied for welding water bed, pvc mattress, inflatable sofa bed large pvc sheet, medical mattress, anti-bedsore mattress, TPU medical mattress, gel bed...

Also applied for PVC inflatable products

I. Machine Features
1. CE rated, with CE certificate

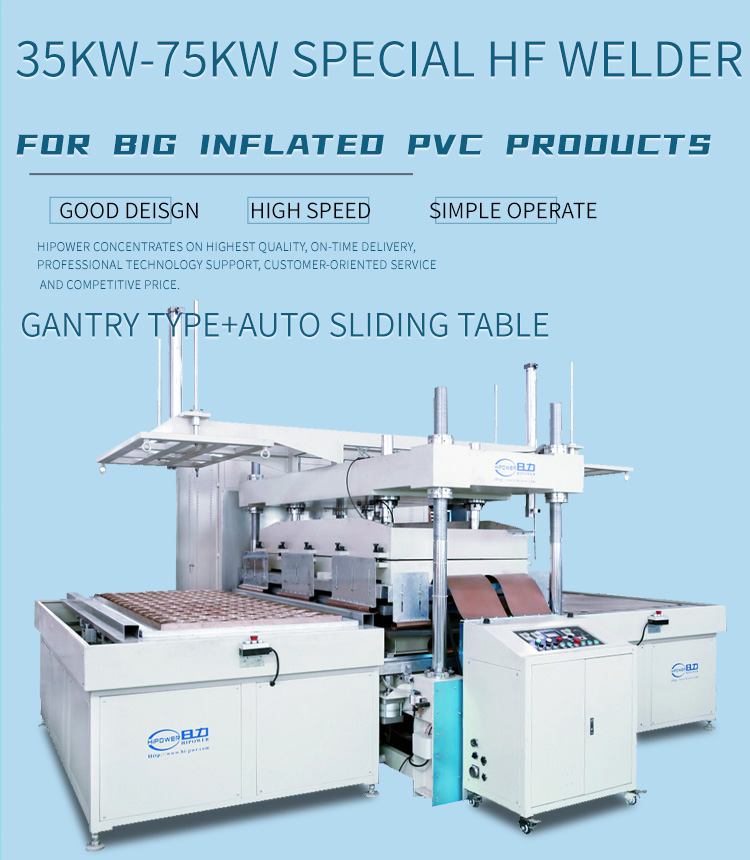

2. automatic 2 sliding welding stations

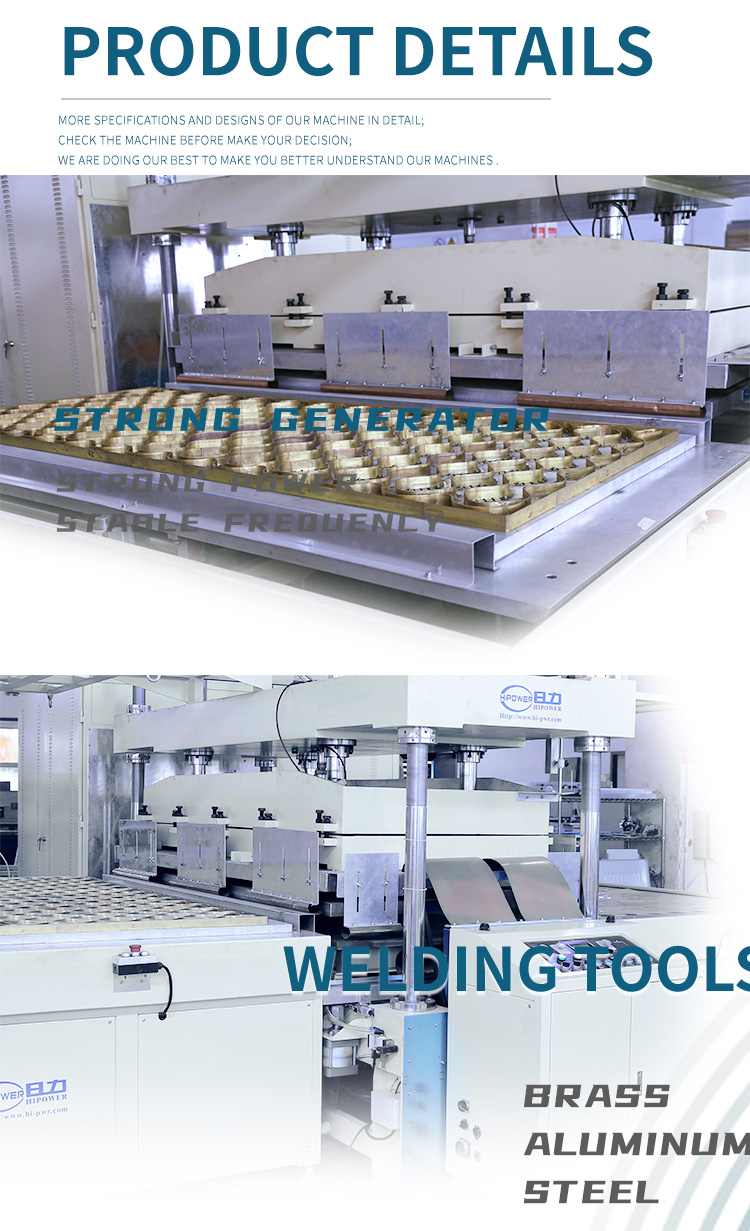

3. Pneumatic mould hanging structure available

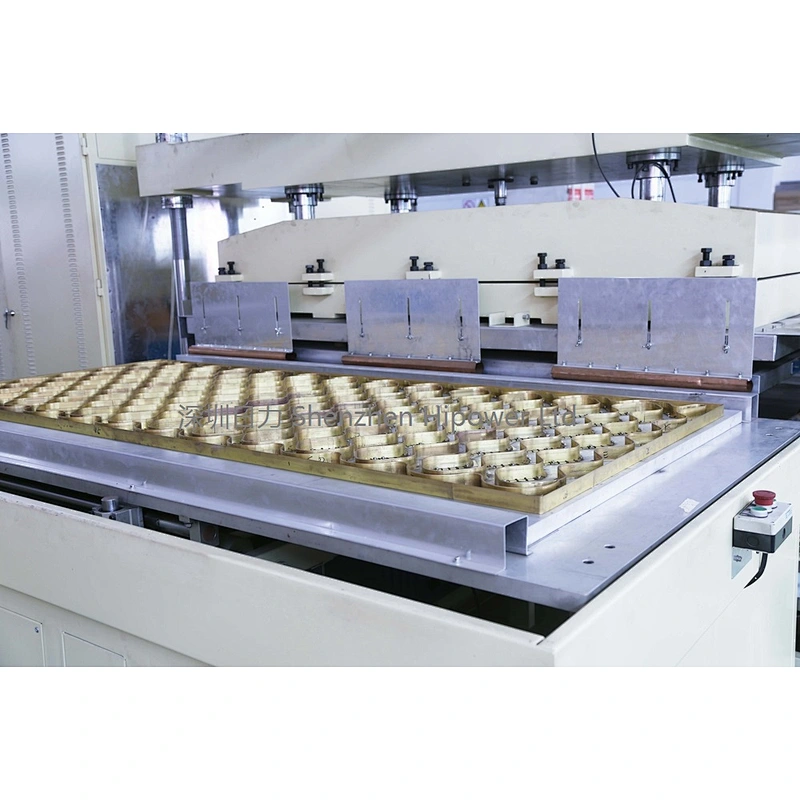

4. Automatic sliding table, table size 1300*1500mm
5. Imported Japan Toshiba tube installed,

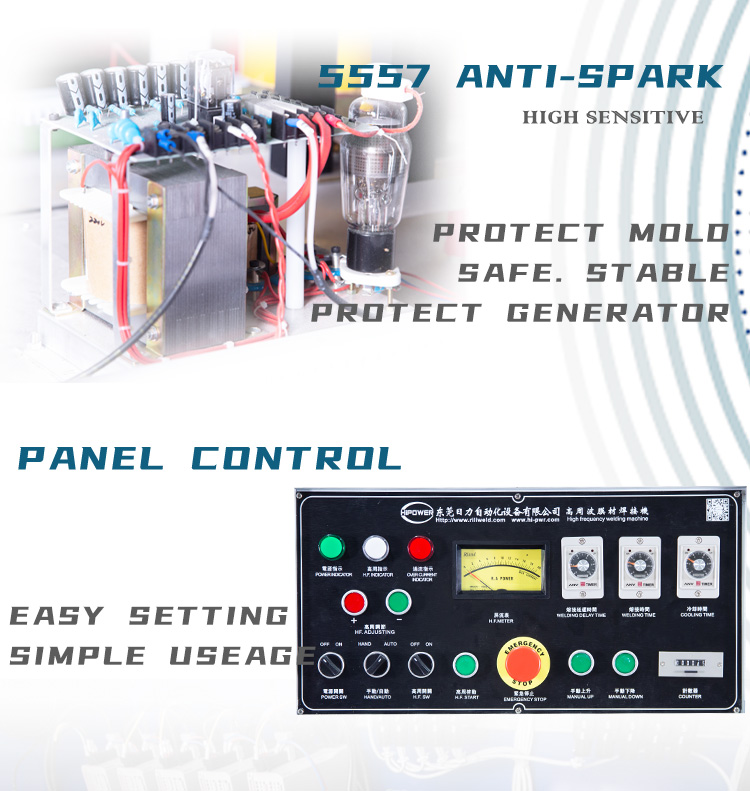

6. 5557 anti spark installed

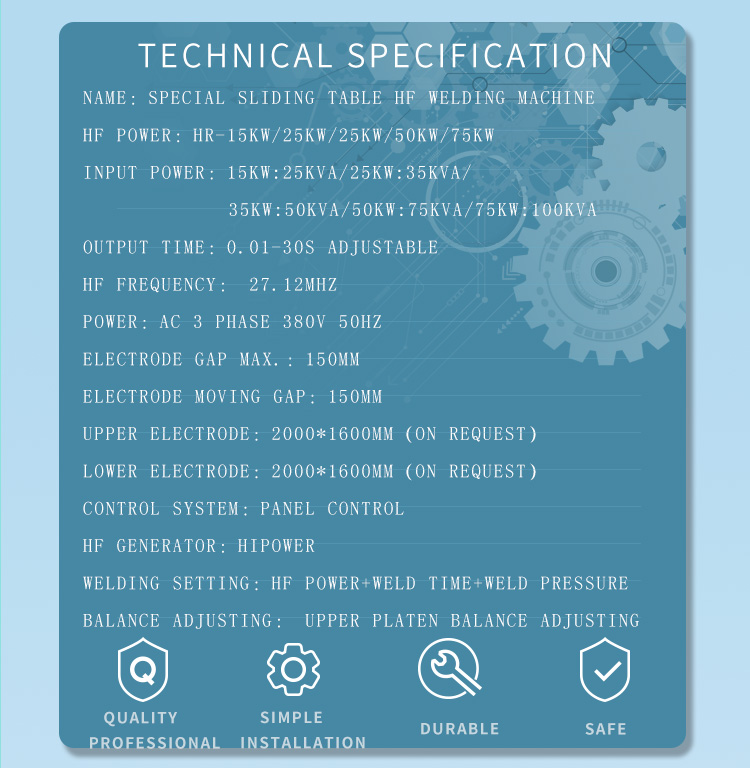

Technical Specifications:
Model: HR-50KW
Output Power of Generator : 50KW
Anti-Spark System: 5557
Voltage : 380V 3Phase
Frequency: 13.56 MHZ
Input power: 35KVA
Rectifier: SILICON DIODE
Oscillation tube: E3116
Max pressure: 2000kg
Operation mode: Peumatic
Max gap of electrodes: 150mm
Size of active horn: 150mm
Upper Electrode (W*H*L): 1500*2000mm (CAN BE ON REQUEST)
Size of Work Table (L*W): 1500*2000mm
Welding time: 1- 10S
