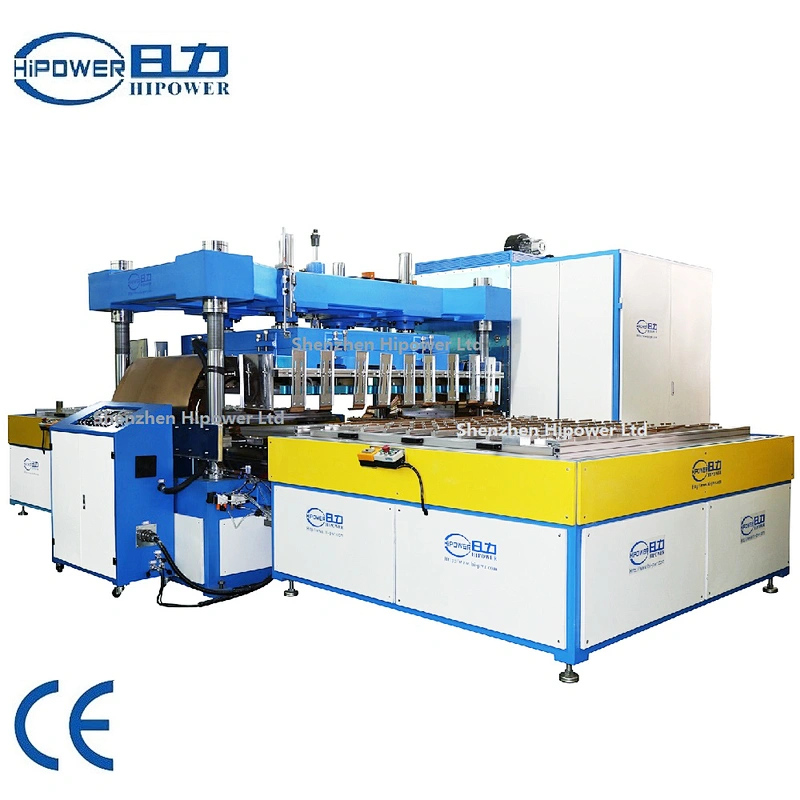

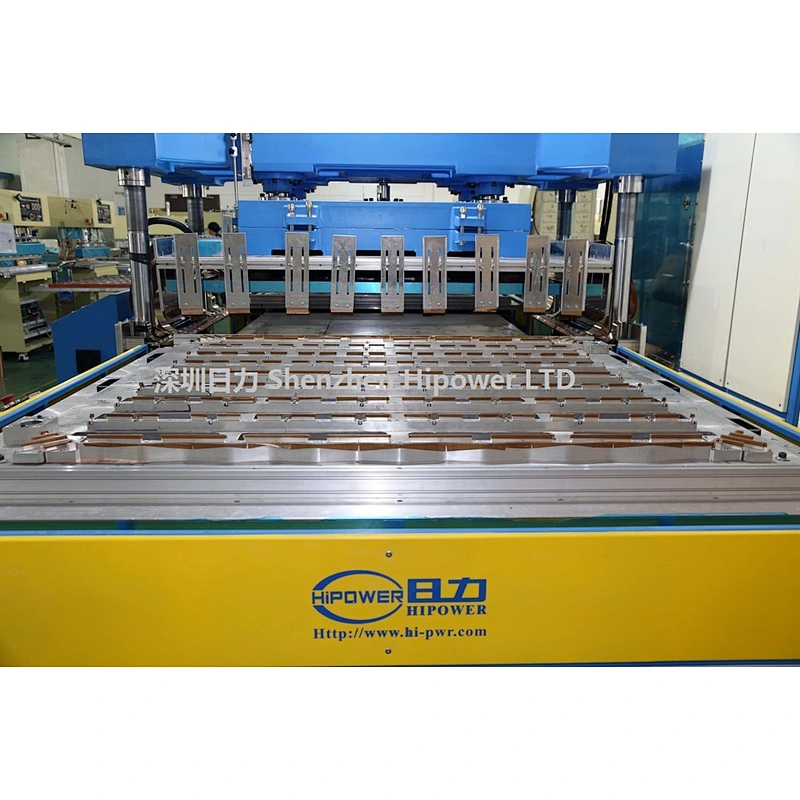

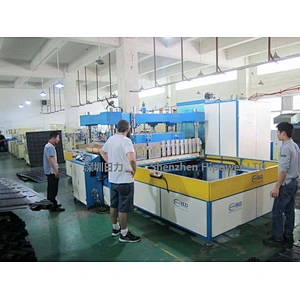

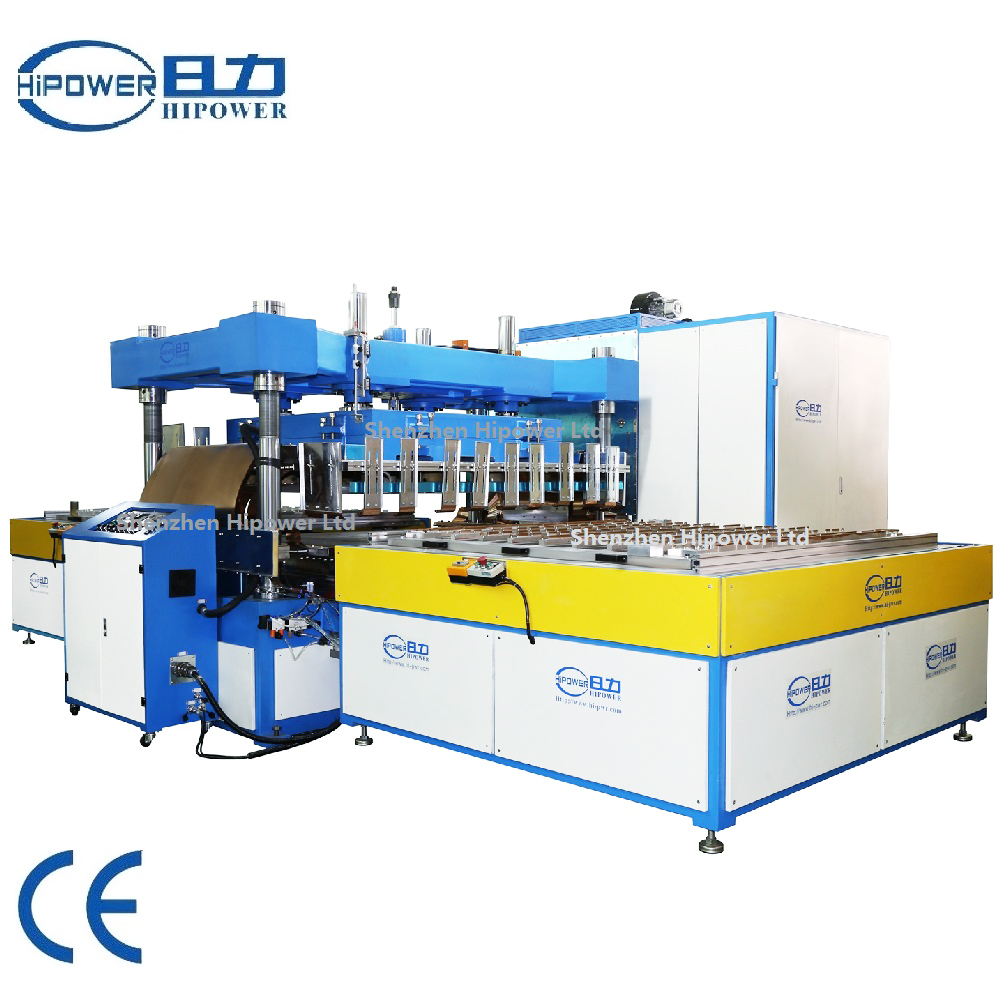

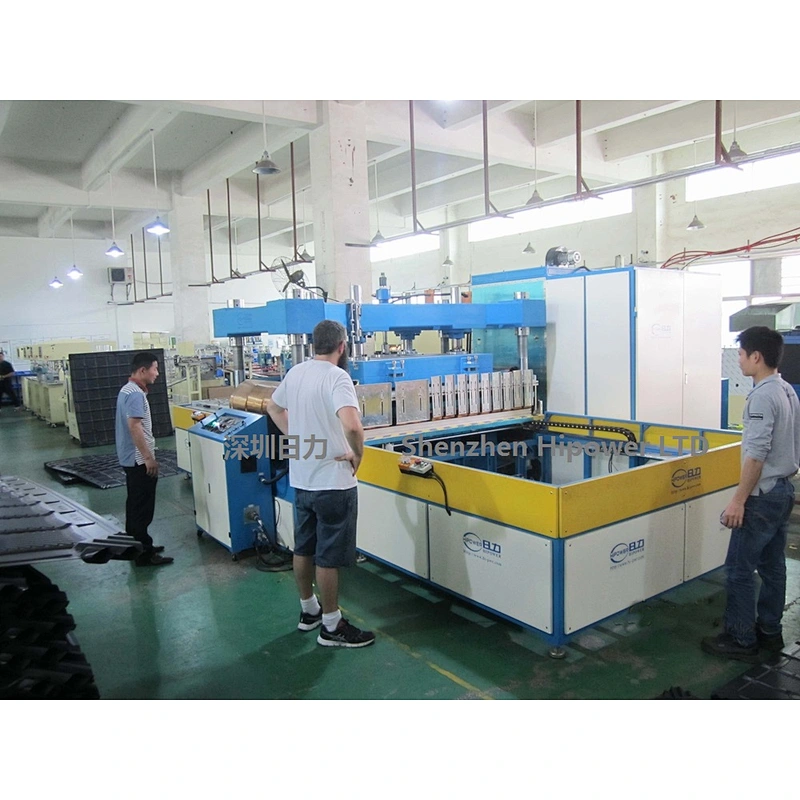

High Frequency cooling tower packing Welding Machine
Application:

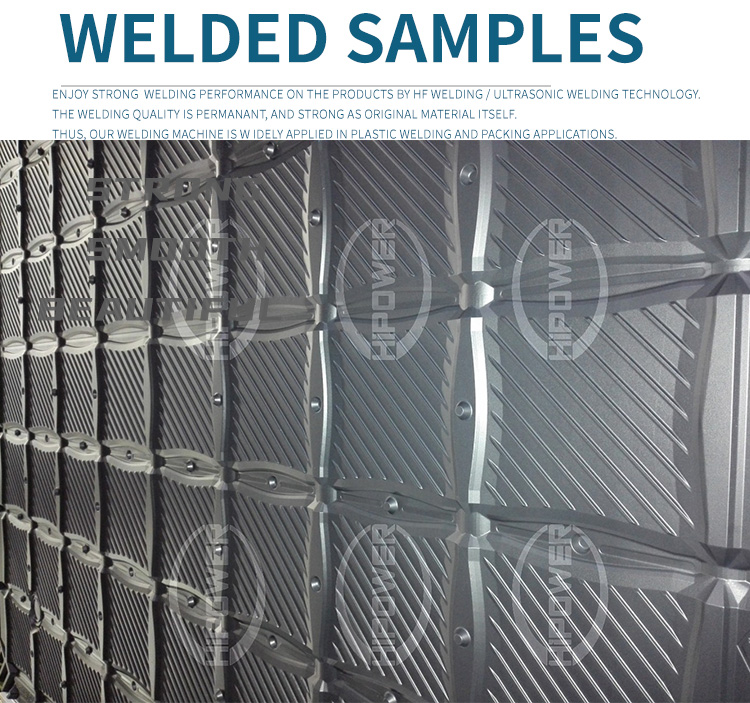

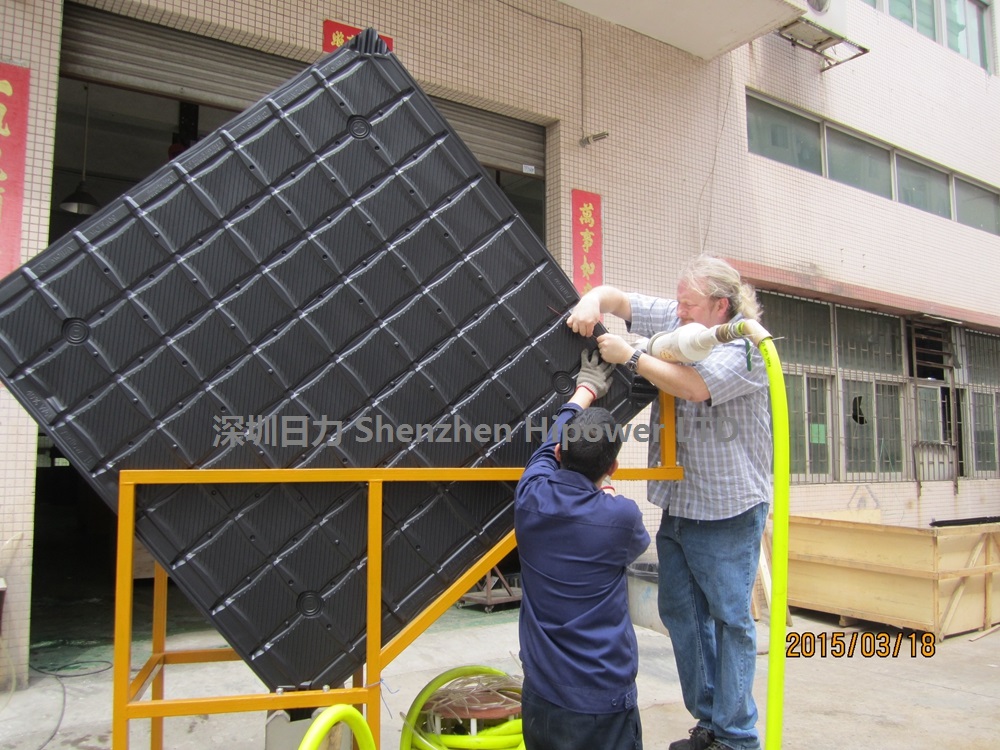

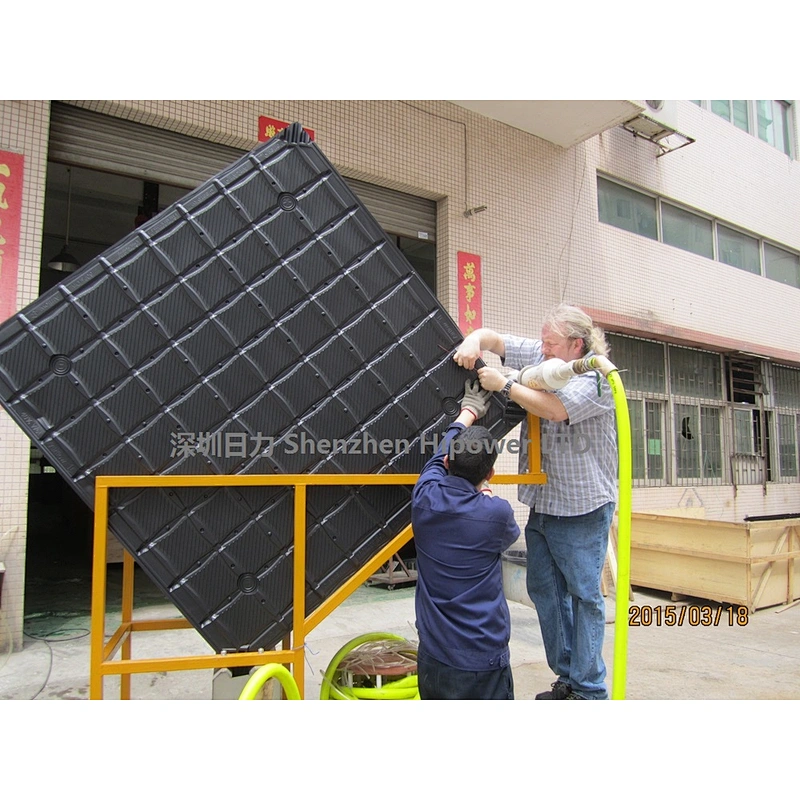

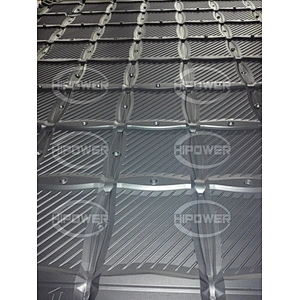

applied for welding large pvc sheet, cooling tower cooling plastic sheet, cooling tower packing,cooling tower PVC packing,industrial cooling tower packing, Drenching PVC sheet, Marley cooling tower packing, PVC drenching sheet, cooling tower PVC drenching sheet,cooling tower PVC drenching packing.
I. Machine Features
1. CE rated, with CE certificate

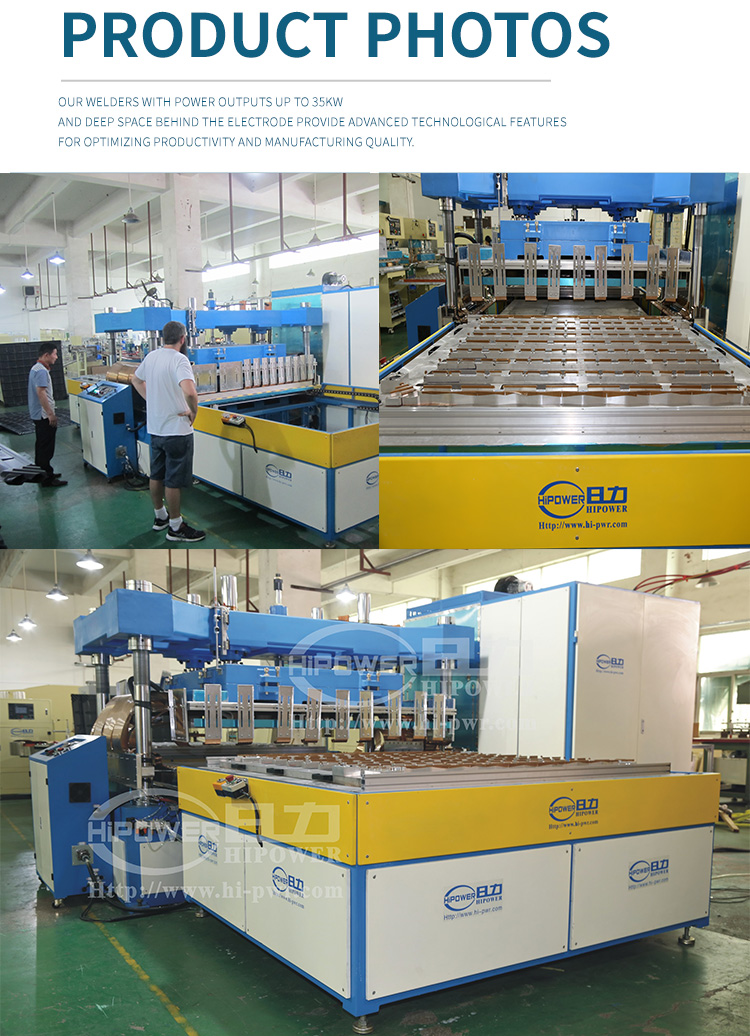

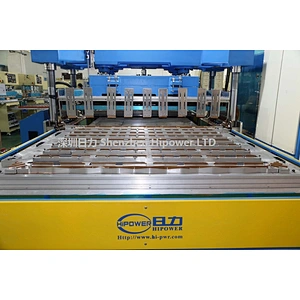

2. Double heads, 4 sliding welding stations
3. Pneumatic mould hanging structure available
4. Automatic sliding table, table size 2000*2200mm
5. Imported Japan Toshiba tube installed,

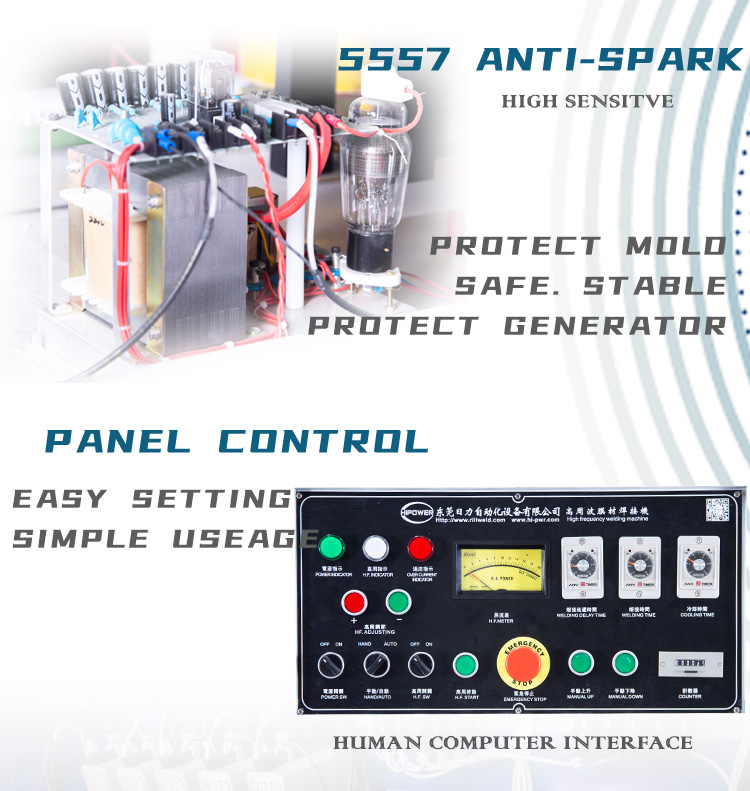

6. 5557 anti spark installed
7. Lower working table with optional heating function.

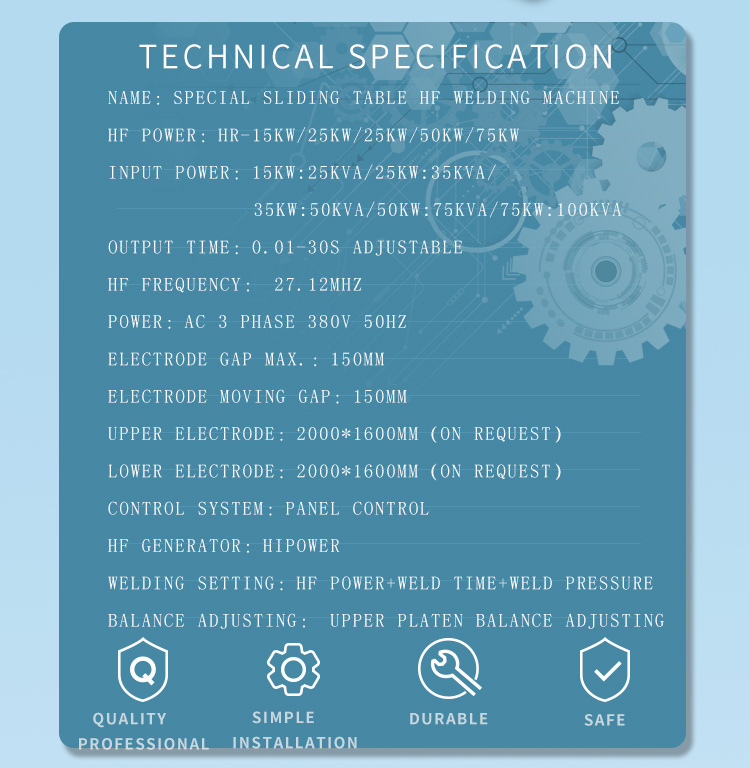

Technical Specifications:
Model: HR-75KW
Output Power of Generator : 75KW
Anti-Spark System: 5557
Voltage : 380V 3Phase
Frequency: 13.56 MHZ
Input power: 100KVA
Rectifier: SILICON DIODE
Max pressure: 2000kg
Operation mode: Peumatic
Max gap of electrodes: 150mm
Size of active horn: 150mm
Upper Electrode (W*H*L): 2000*2200mm
Size of Work Table (L*W): 2000*2200mm
Welding time: 1- 10S
