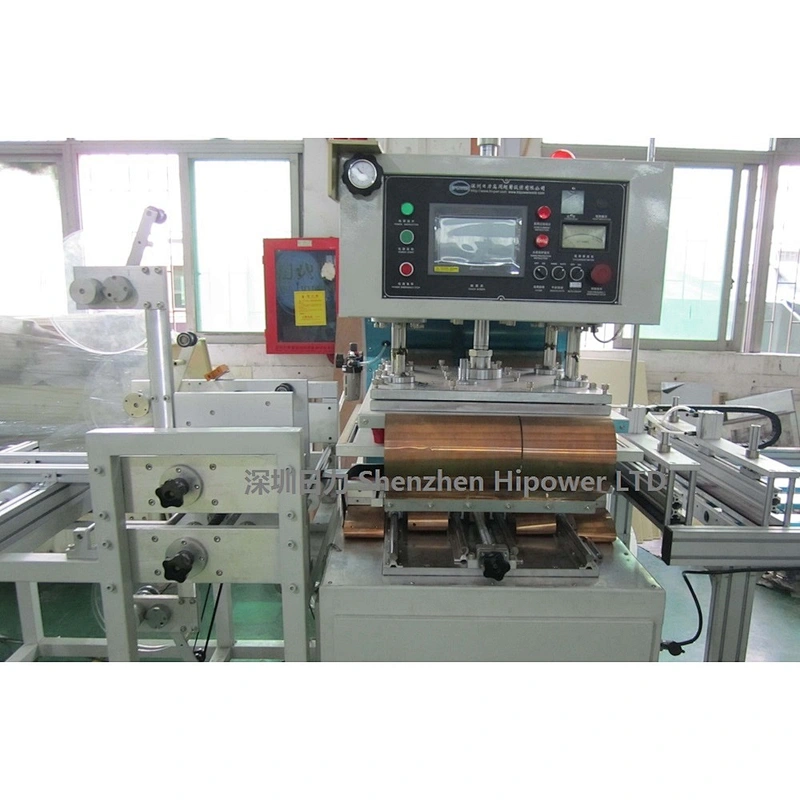

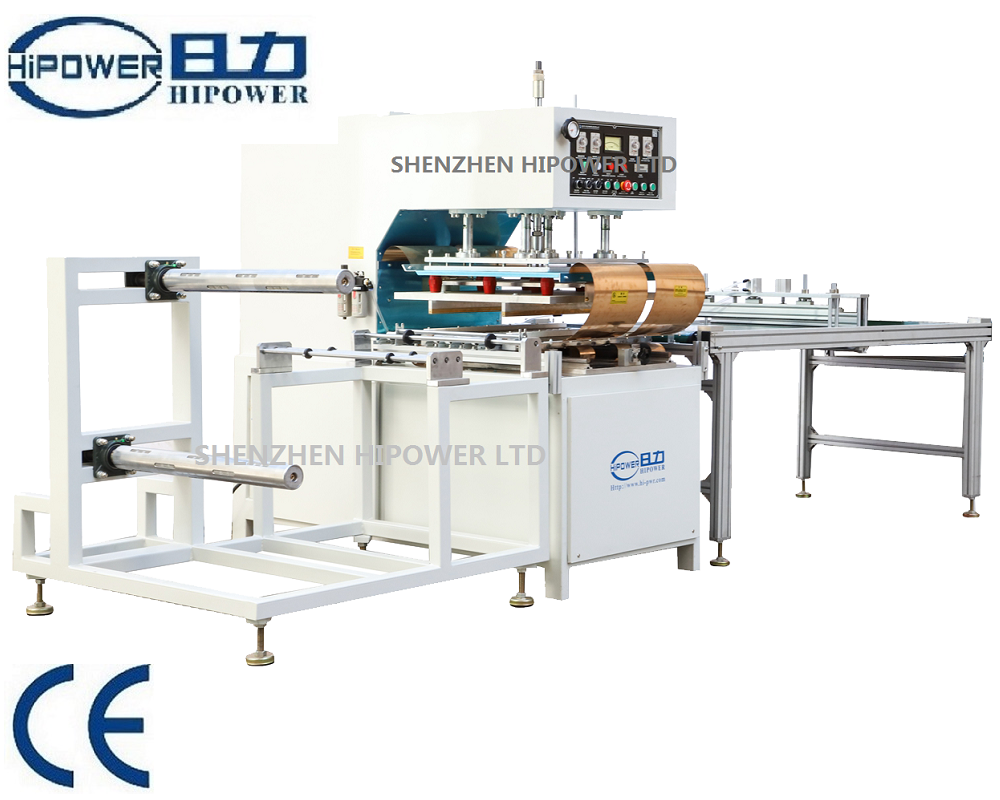

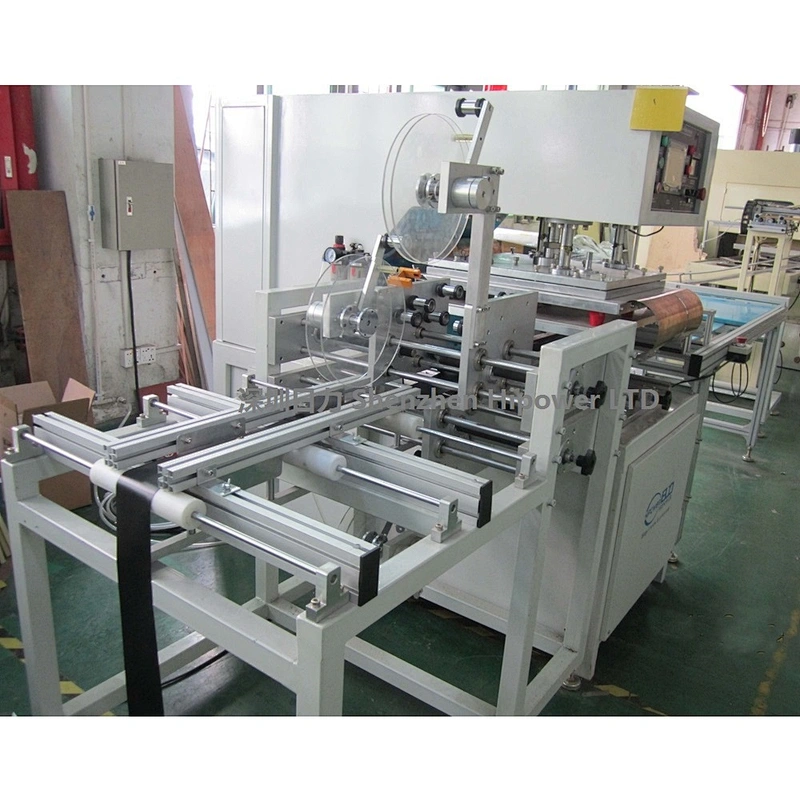

HR-8000G Automatic High Frequency Welding Machine for pvc sleeve
Character
1.Optional of feeding-transfering material simultaneously,adjustable operating speed.
2.Electronic counting,continuous automatic feeding speed,suitable for different materials.
3.Exported abrasion proof of transformation,avoid damaging the mould.

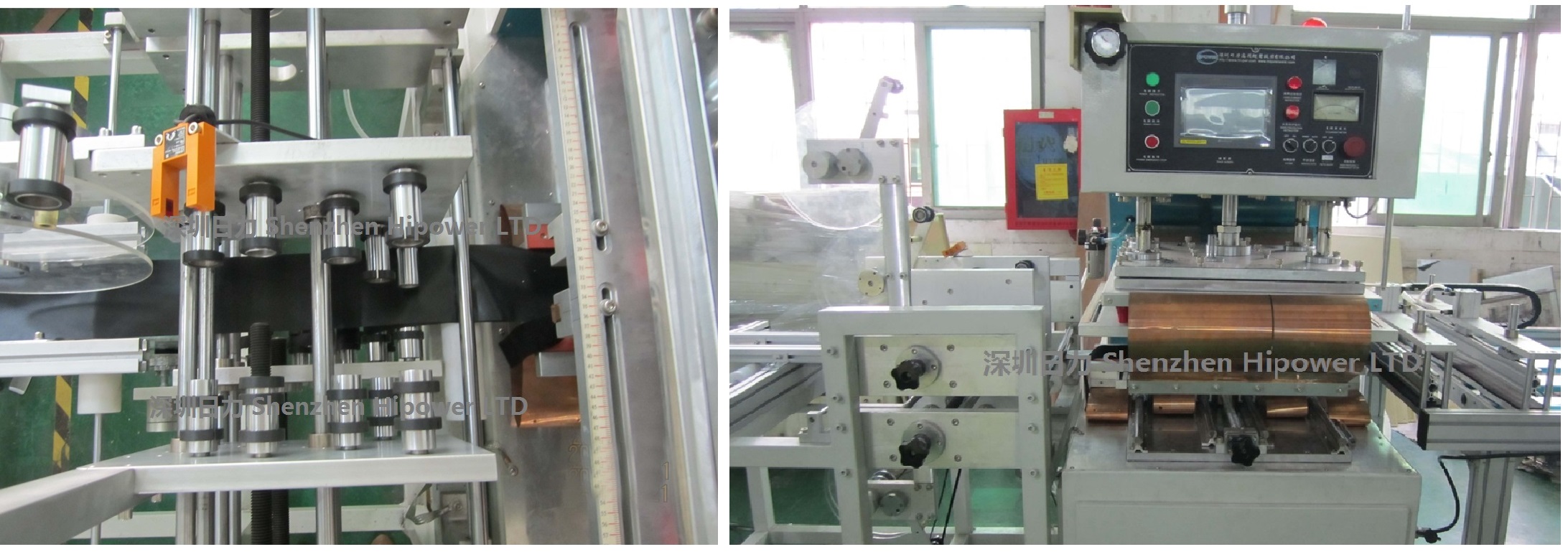

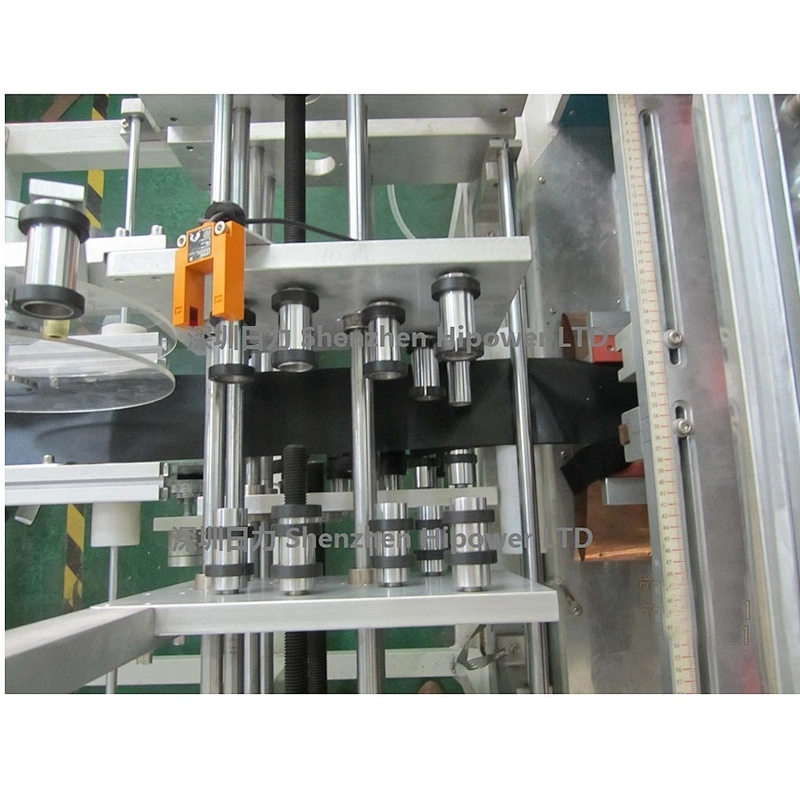

4.Photoelectricity induction,feeding-collecting simultaneously,precise-controlled.

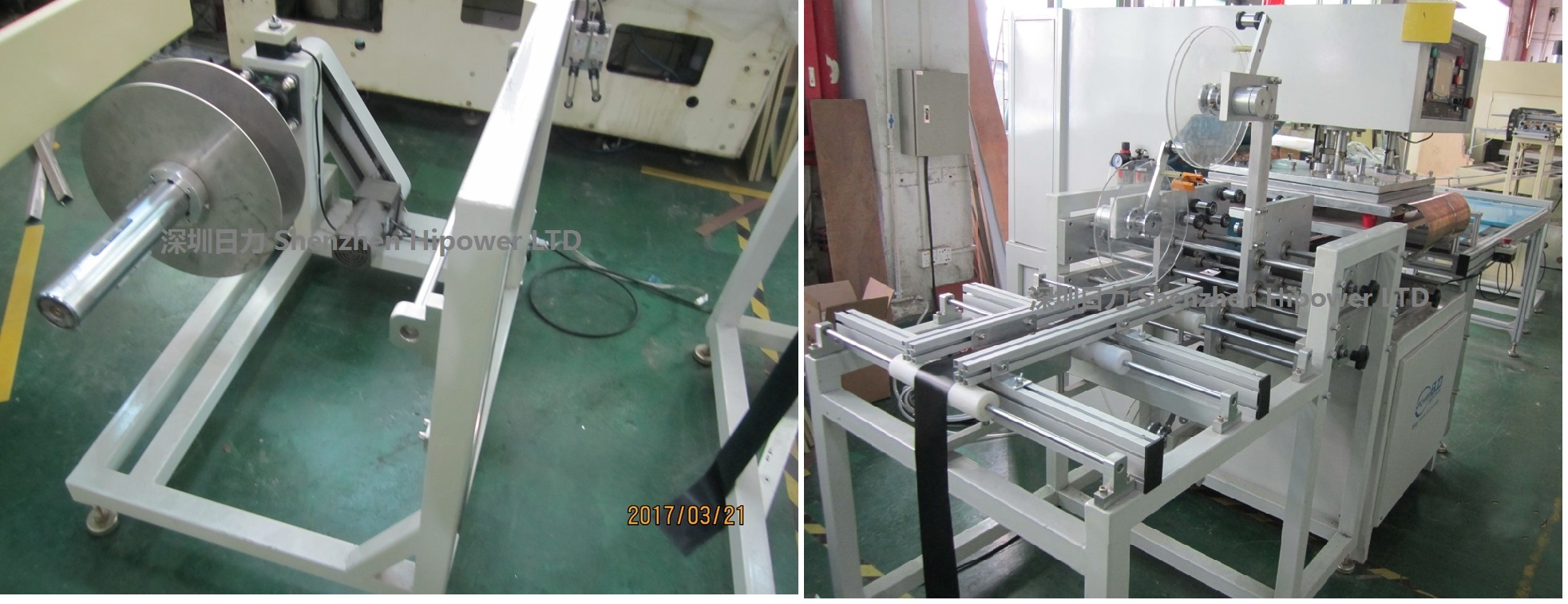

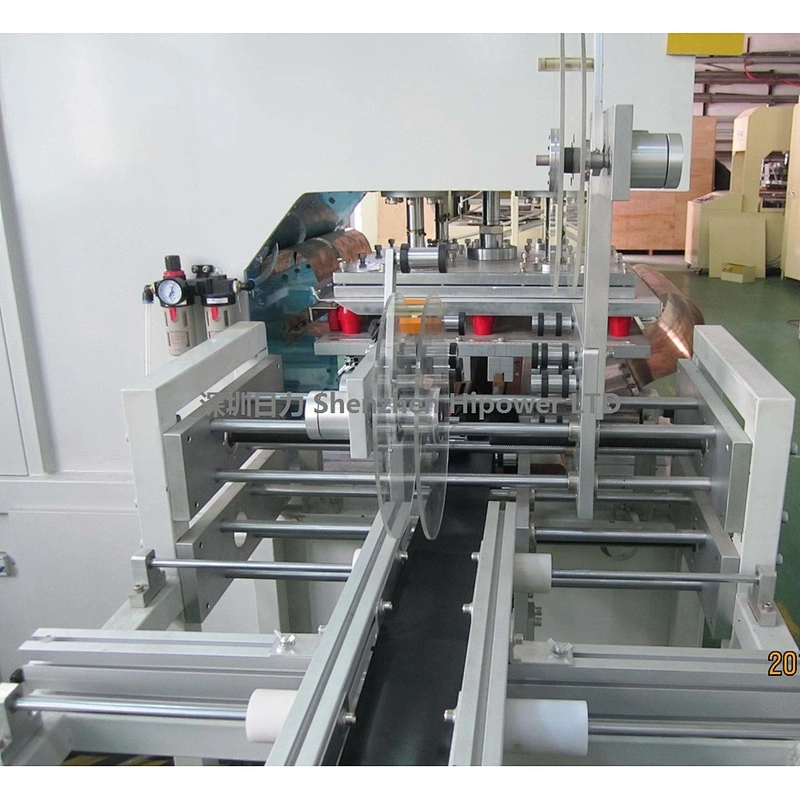

5. Pneumatic material feeding device installed
6. Waste collecting device installed
Technical parameter:
Model | HR-8000G |
Power | 8000W |
Vlotage | 380V 50/60Hz or custom |
Frequency | 27.12MHz |
Input power | 15KVA |
Rectifier | SILICON DIODE |
Viboration tube | 7T69RB |
Maximum pressure | 500kg |
Max gap of electrodes | 100MM |
Size of active horn | 100MM |
Size of upper electrode | 500*700mm |
Size of working plate | 600*800mm |
Scale of tempreture | 0~200 Adjustable |
Welding time | 0~10S Adjustable |
Productivity | Equal or less 6000times/8h |
Net weight | 1600kg |
Dimension | 4500*1250*2000 |
