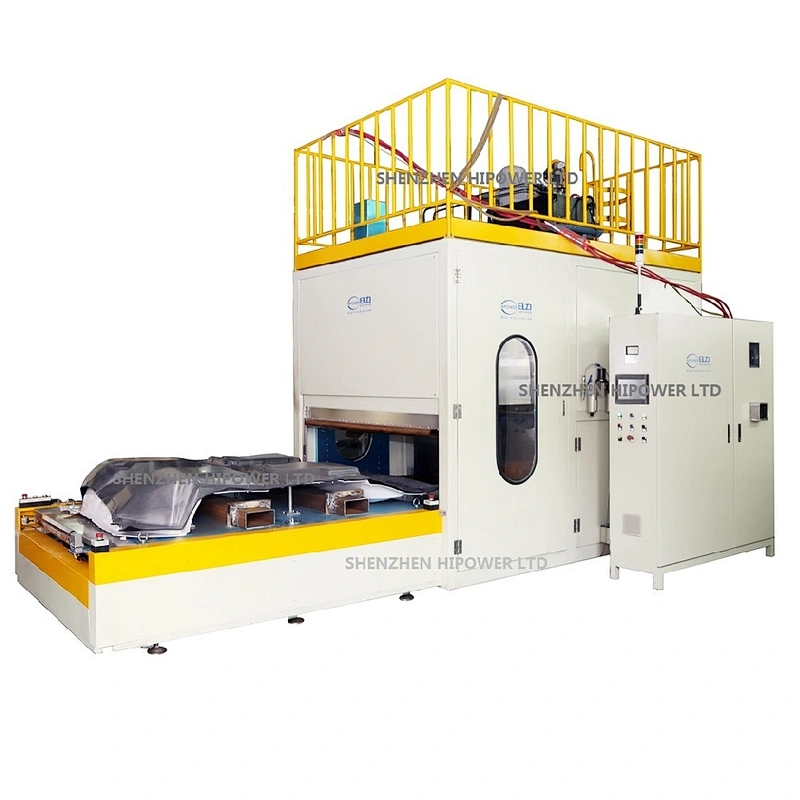

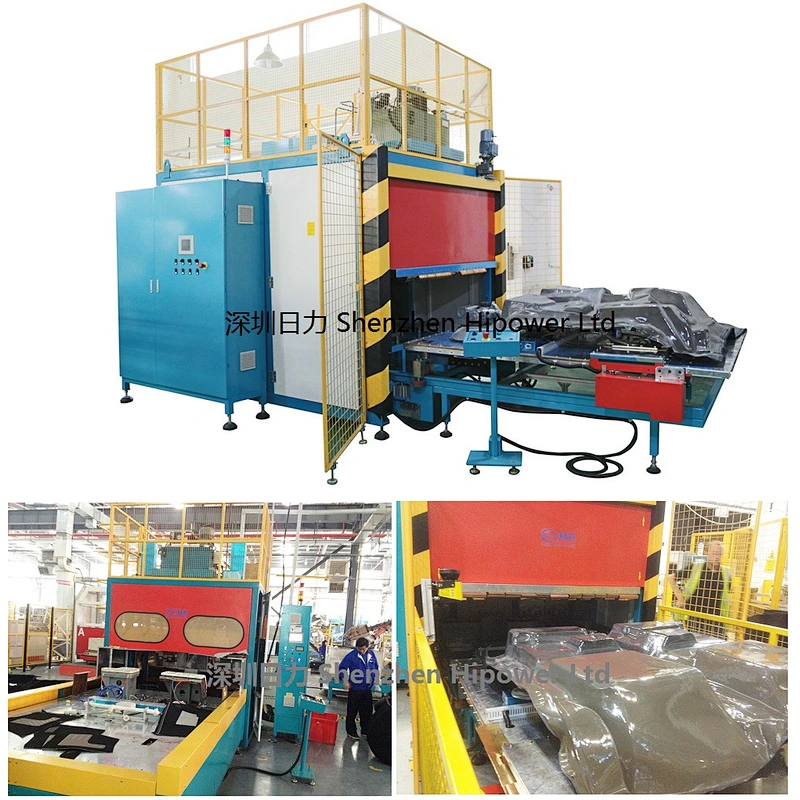

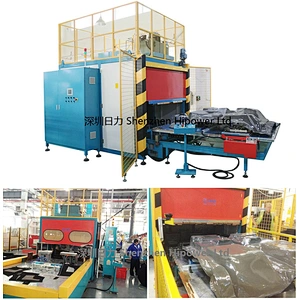

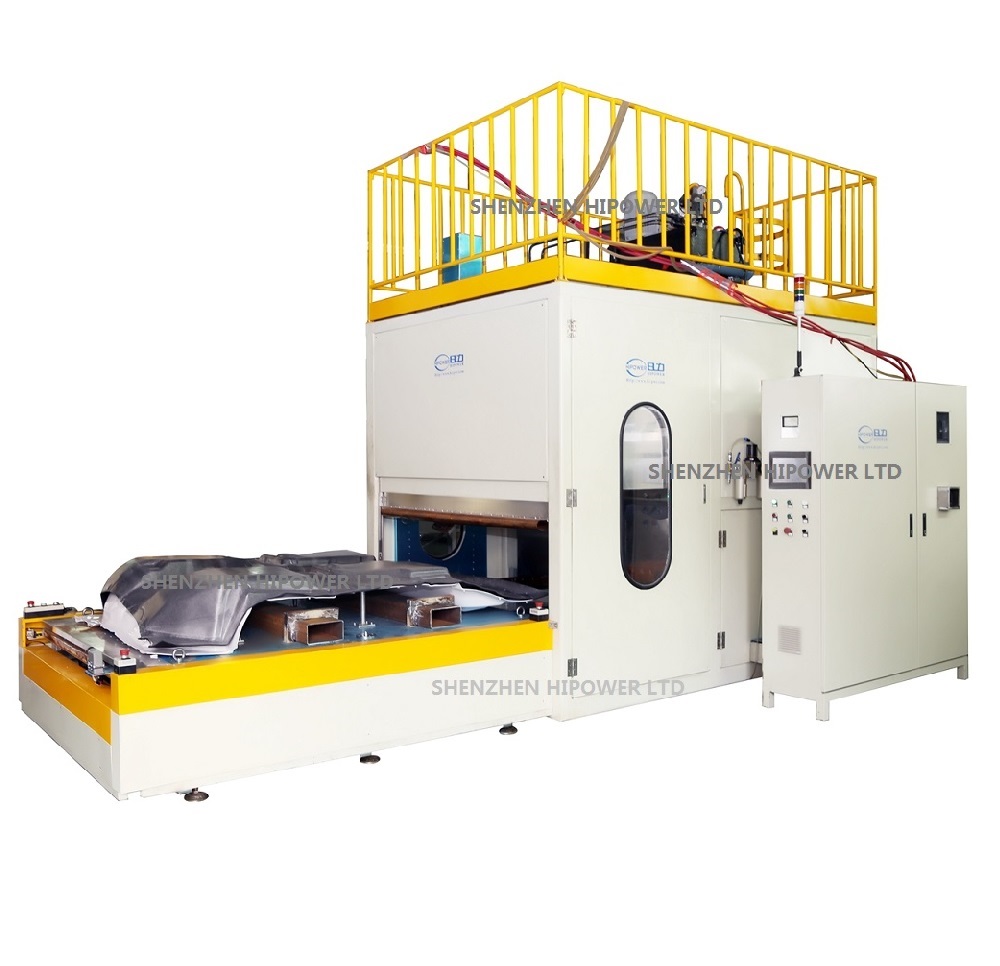

High Frequenc Welding Machine for Automobile Carpet
High Frequency Welding Machine for Automobile carpet which is suitable for PVC heelmat and automobile carpet .

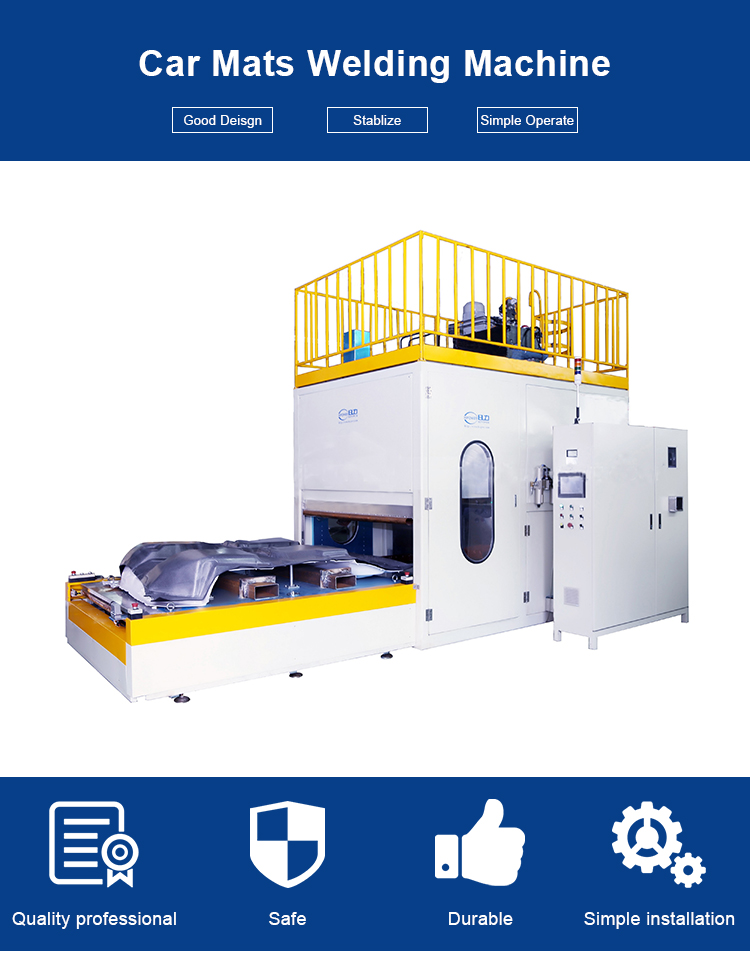

Automatic Car Carpet Welding Machine is specially designed for producing carpets for Audi A2; the Ford MONDEO;
Mercedes SLK; OPEL ASTRA, EPSILON, SAPHIRA; Porsche 982,996; Volkswagen COLORADO, POLO, GOLF, PASSAT NEW
BEETLE Chrysler, Skoda, Seat, Peugeot, BMW, Volvo and many other automobile models

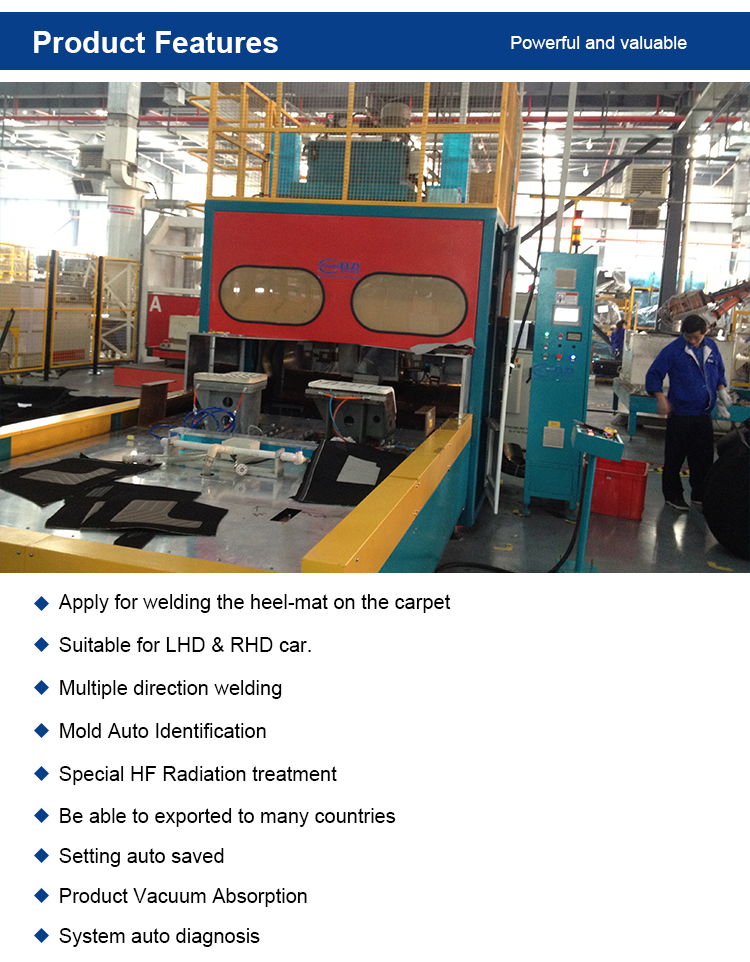

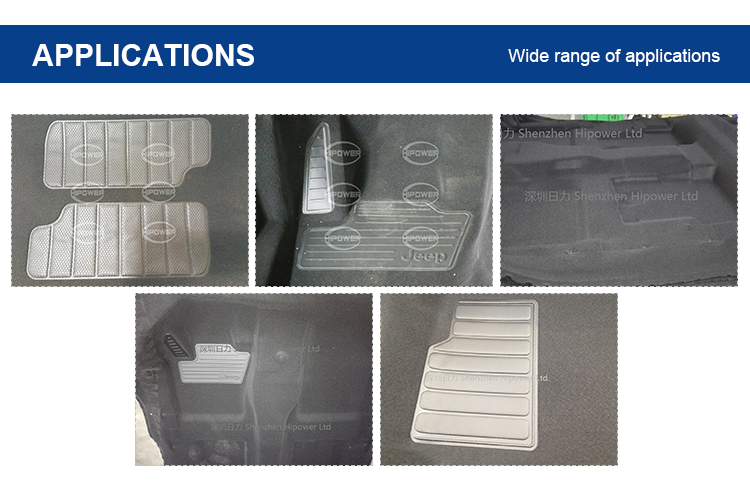

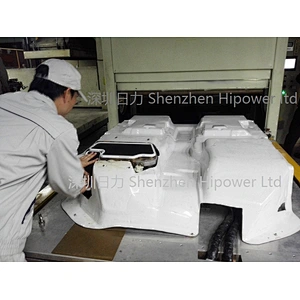

1. Apply for welding the heel-mat on the carpet
2. Suitable for LHD & RHD car.

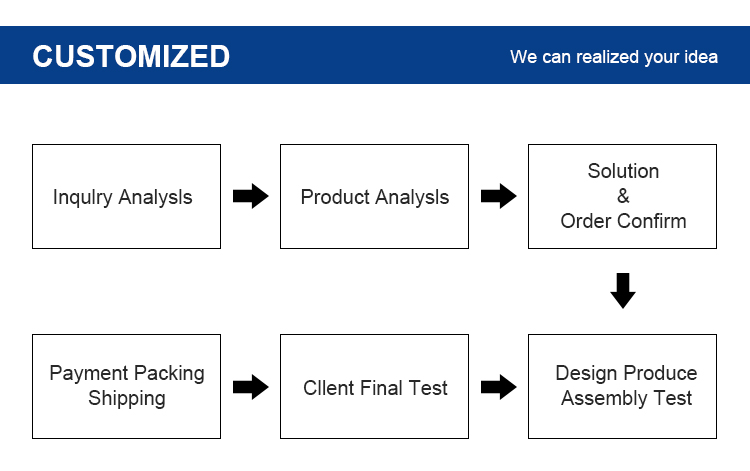

3. Customized service offered.
4. Hydraulic Pressure from 2 ton -5 ton.
5. PLC programmed
Machin Specification:
Model HR-15KW-2QT
Power 15000W
Power Supply 380V 3P 50HZ
Frequency 27.12MHz
Input power 25KVA
Rectifier SILICON DIODE
Oscillation tube 8T85RB
Max pressure 2000KG (Hydraulic)
Gap of electrodes 150MM
Moving distance of active horn 150MM
The size of upper electrode 550*400MM
The size of buttom electrode 600*500MM
