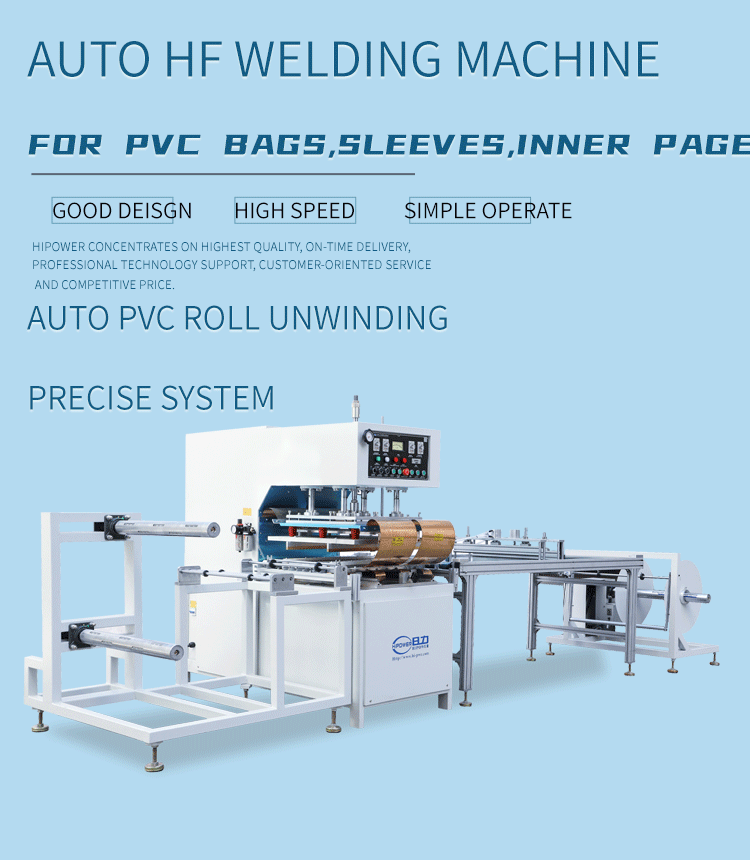

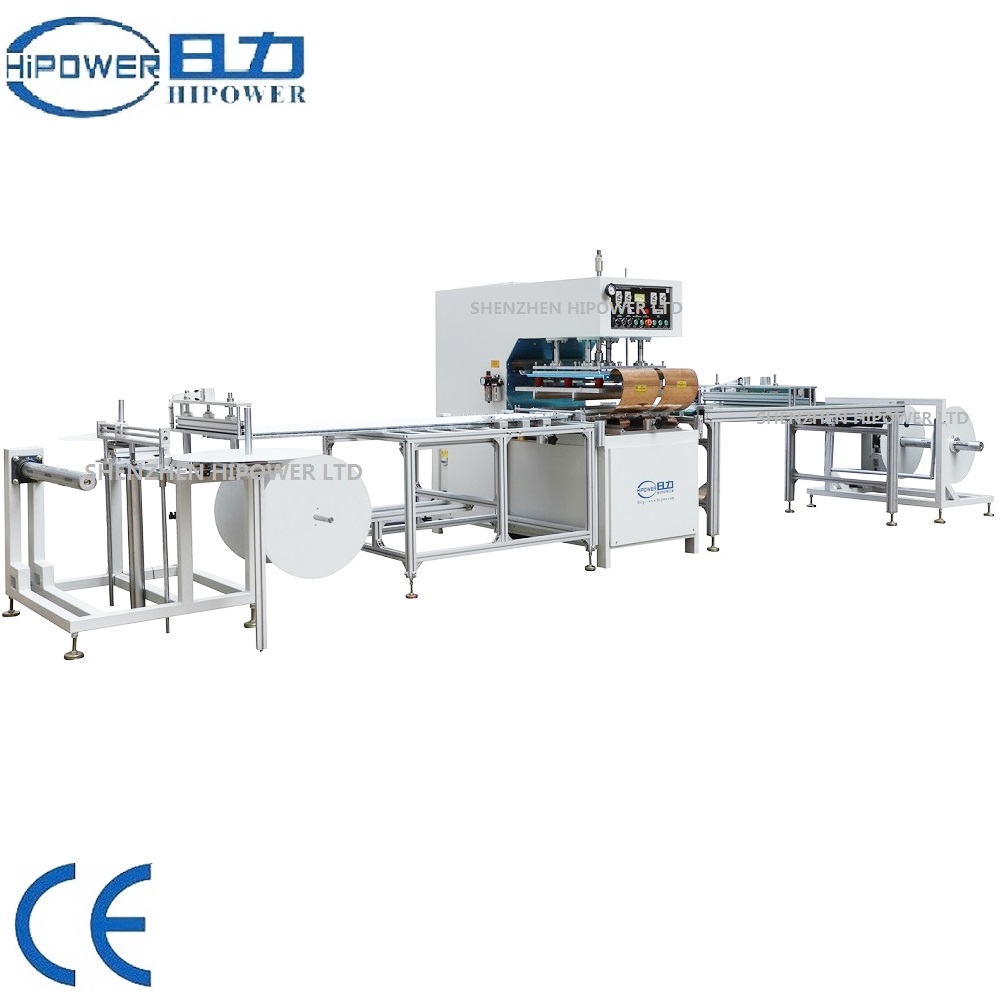

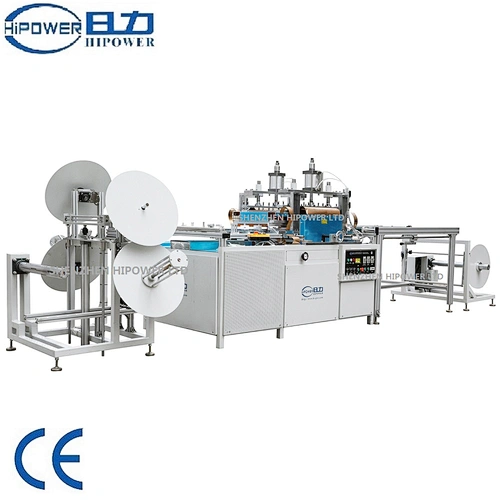

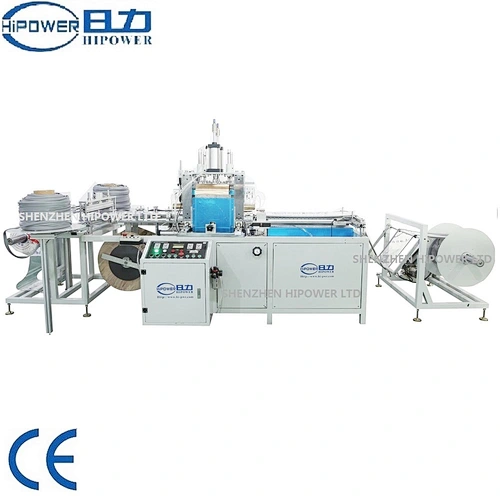

High Frequency PVC Door Curtain Welding Machine
Application:

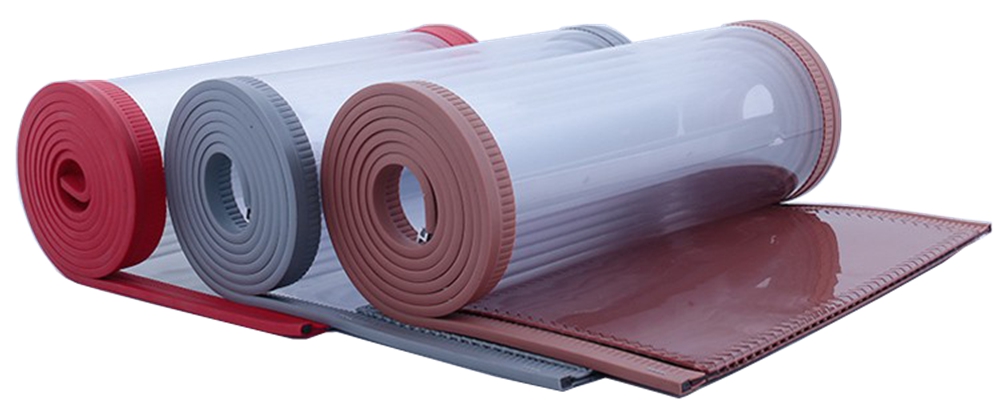

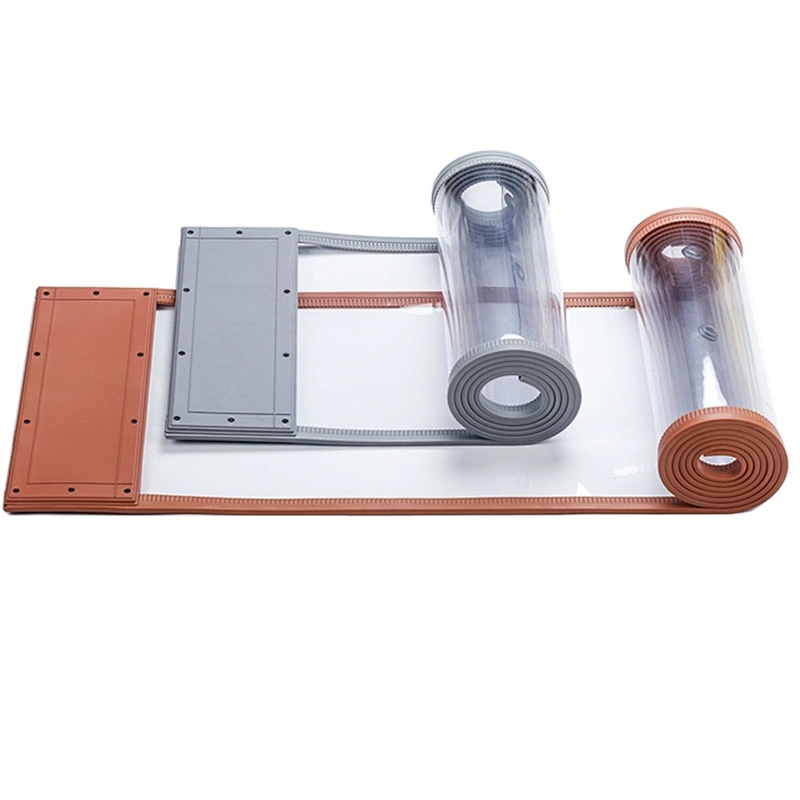

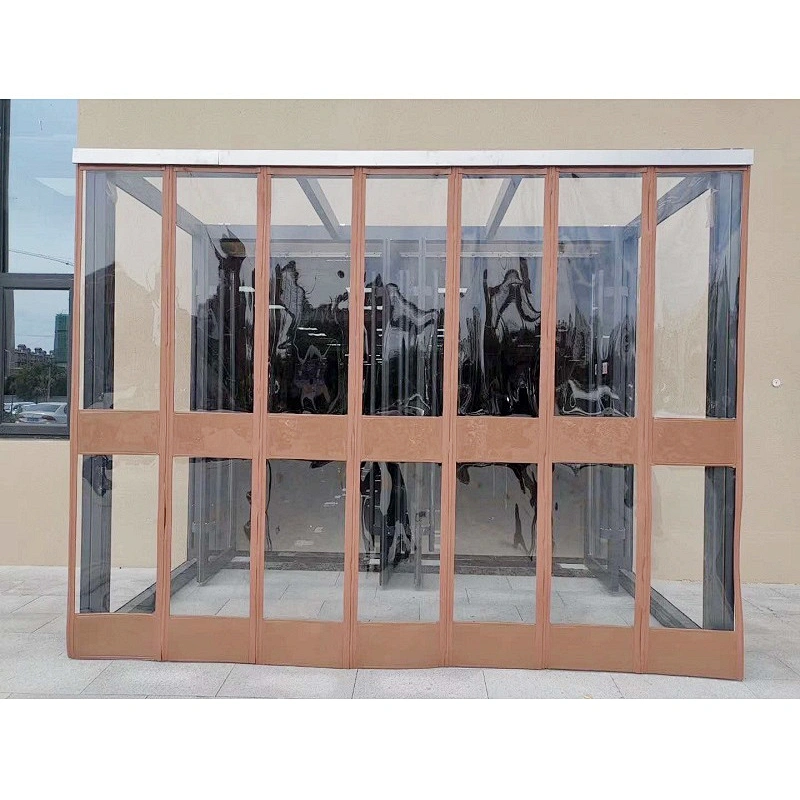

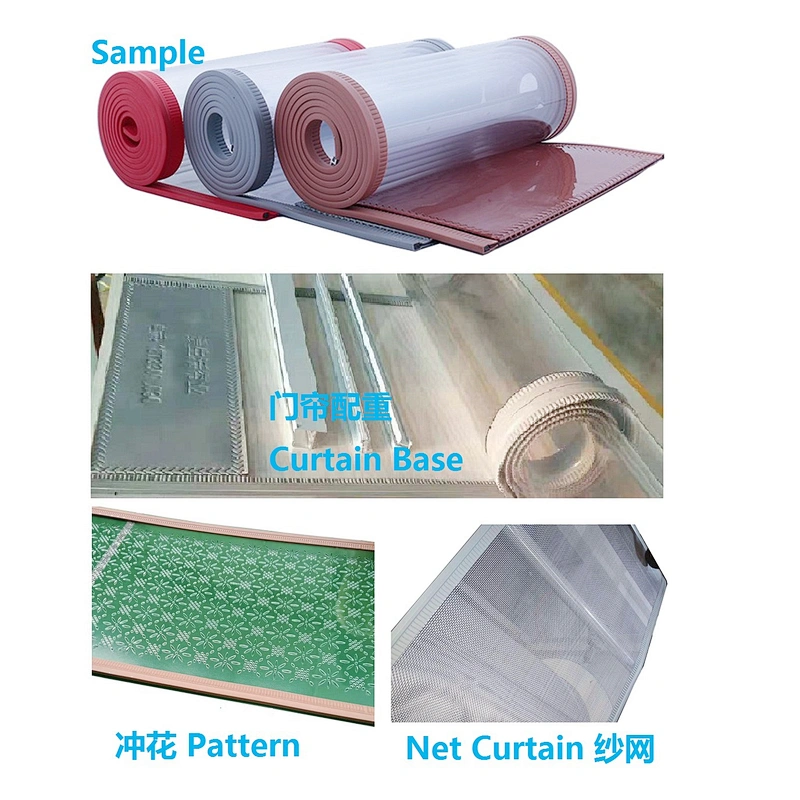

For welding PVC curtain, clear curtain, PVC folder, PVC page, PVC bags...

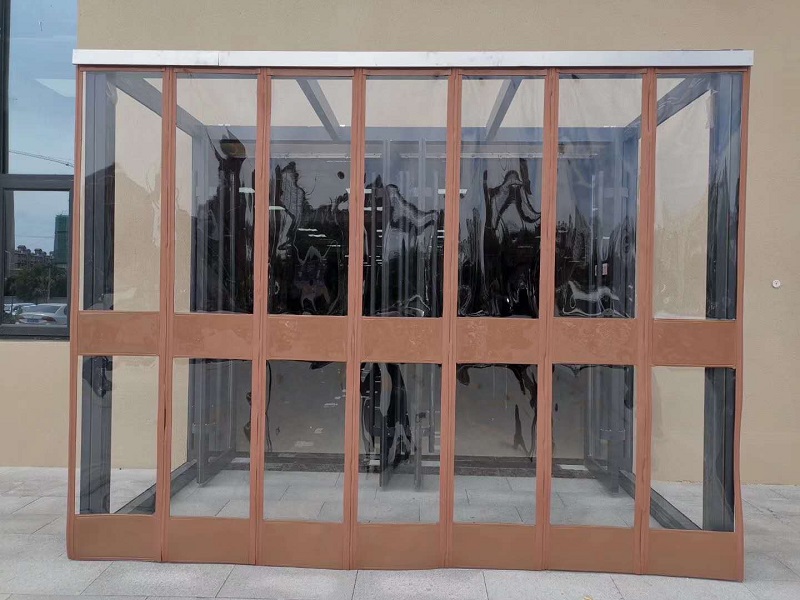

Mainly used for family hotels, restaurants, food processing plants, fresh processing centers, beverage processing plants, pharmaceutical plants, a variety of plants by insect repellent, a variety of health and safety areas.
Character
1.Optional of feeding-transfering material simultaneously,adjustable operating speed.
2.Electronic counting,continuous automatic feeding speed,suitable for different materials.
3.Exported abrasion proof of transformation,avoid damaging the mould.
4.Photoelectricity induction,feeding-collecting simultaneously,precise-controlled.

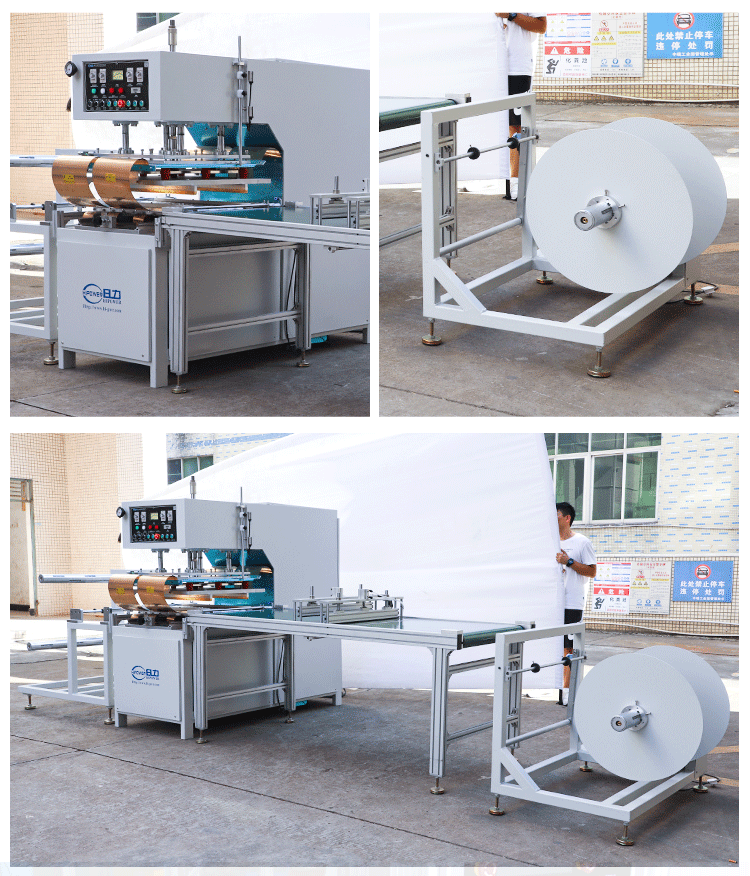

5. Pneumatic material feeding device installed

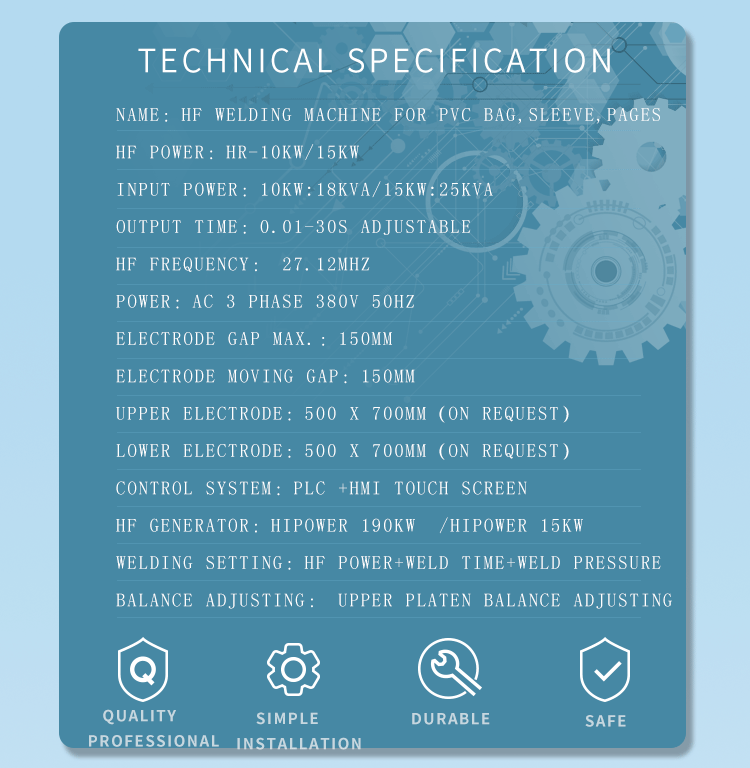

Technical parameter:
Model | HR-10KWG |
Power | 10KW |
Vlotage | 380V 50/60Hz or custom |
Frequency | 27.12MHz |
Input power | 18KVA |
Rectifier | SILICON DIODE |
Viboration tube | E3069 |
Maximum pressure | 1000KGS |
Max gap of electrodes | 100MM |
Size of active horn | 100MM |
Size of upper electrode | 500*700mm |
Size of working plate | 600*800mm |
Scale of tempreture | 0~200 Adjustable |
Welding time | 0~10S Adjustable |
Productivity | 1000meters / 8h |
Net weight | 1600KGS |
Dimension | 4500*1250*2000mm |
